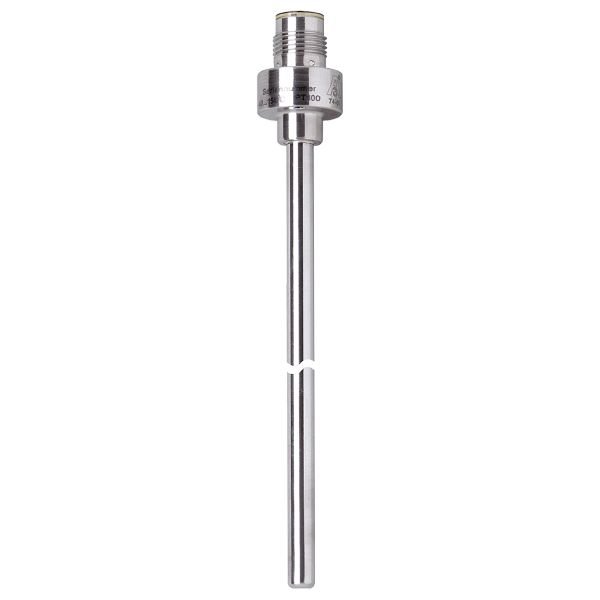

TT9291 - efector600-TT-050KFED06- /US/
Brand: IFM Electronic
Code: TT9291
- Precise temperature measurement in containers, tanks and pipes
- For the connection to an evaluation unit
- Very short response time for use in processes with fast temperature fluctuations
- Hygienic design for the requirements of the food and beverage industry
- Variable process connection using adapters
Product characteristics
| Measuring range |
| ||
|---|---|---|---|
| Process connection | diameter Ø 6 mm | ||
| Installation length EL [mm] | 50 |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
| Application | hygienic systems |
| Media | liquids and gases |
| Pressure rating [bar] | 160 |
| Minimum installation depth [mm] | 15 |
Electrical data
| Protection class | III |
|---|
Measuring/setting range
| Probe length L [mm] | 50 | ||
|---|---|---|---|
| Measuring range |
|
Accuracy / deviations
| Accuracy [K] | ± (0,15 K + 0,002 x|t|) |
|---|
Response times
| Dynamic response T05 / T09 [s] | 1 / 3; (to DIN EN 60751) |
|---|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Storage temperature [°C] | -40...100 |
| Protection | IP 68; IP 69K |
Tests / approvals
| Shock resistance |
| ||
|---|---|---|---|
| Vibration resistance |
| ||
| MTTF [years] | 22831 |
Mechanical data
| Weight [g] | 25.5 |
|---|---|
| Dimensions [mm] | Ø 6 |
| Materials | stainless steel (1.4404 / 316L) |
| Materials (wetted parts) | stainless steel (1.4404 / 316L) electropolished |
| Process connection | diameter Ø 6 mm |
| Surface characteristics Ra/Rz of the wetted parts | Ra: < 0.8 |
| Probe diameter [mm] | 6 |
| Installation length EL [mm] | 50 |
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TT9291-00 — 13.06.2023 —
