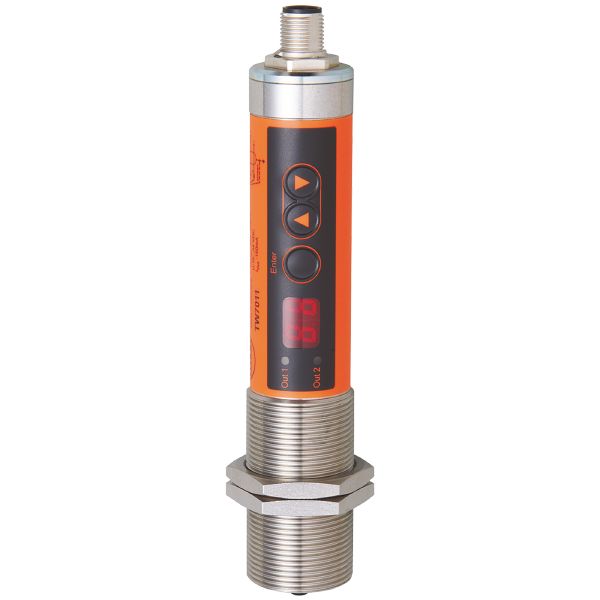

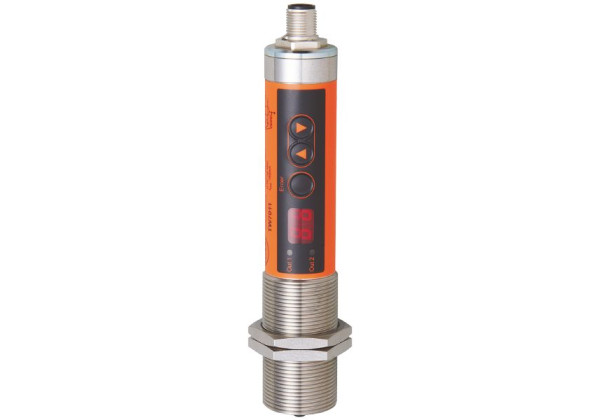

TW7011 - efector600-TW-008CODM30-QFPKG/US

Brand: IFM Electronic

Code: TW7011

Reliable, non-contact detection of objects with very high temperatures
For applications in the steel and glass industries
Intuitive setting of the switching temperature via pushbutton and display
Switch points of the two switching outputs can be adjusted independently
With fibre optics and measuring head for use where space is restricted

Product characteristics

Number of inputs and outputs

Number of digital outputs: 2

Measuring range

350...1350 °C

662...2462 °F

Application

Application	tempering temperatures; graphite; ceramics; metals; forging; sintering; heat treatment; rolling

Electrical data

Operating voltage [V]	10...34 DC
Current consumption [mA]	30; (24 V)
Protection class	III

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Inputs

Test input	test function active at U(test) > 9 V

Outputs

Total number of outputs	2
Output signal	switching signal
Electrical design	PNP
Number of digital outputs	2
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	150
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Wave length range [µm]	1...1.7

Measuring/setting range

Measuring range

350...1350 °C

662...2462 °F

Factory setting

SP1 = 25 %; rP1 = 23 %; SP2 = 75 %; rP2 = 73 %

Set point SP

350...1340 °C

662...2444 °F

Reset point rP

350...1340 °C

662...2444 °F

In steps of

10 °C

18 °F

Resolution

Resolution of switching output [K]	10
Resolution of display [K]	10

Accuracy / deviations

Accuracy [K]	< ± 1 %; (of VMR (degree of emission = 1 and T = 23 °C))

Response times

Response time [ms]	2

Software / programming

Adjustment of the switch point	programming buttons
Parameter setting options	Hysteresis; normally open / normally closed; switch-on/switch-off delay

Operating conditions

Ambient temperature [°C]	0...65
Storage temperature [°C]	-20...80
Max. relative air humidity [%]	95; (non condensing)
Protection	IP 65

Tests / approvals

EMC

DIN EN 61000-4-2 ESD	4 kV CD / 8 kV AD
DIN EN 61000-4-3 HF radiated	10 V/m
DIN EN 61000-4-4 Burst	2 kV coupling clamp
DIN EN 61000-4-5 Surge	0,5 / 1 kV
DIN EN 61000-4-6 HF conducted	10 V
EN 55011 emission	class B

Shock resistance

DIN EN 60068-2-27

30 g (11 ms)

Vibration resistance

DIN EN 60068-2-6

5 g (10...2000 Hz)

MTTF [years]

117

Mechanical data

Weight [g]

374

Housing

threaded type

Dimensions [mm]

M30 x 1.5 / L = 163

Thread designation

M30 x 1.5

Fibre optic connection

¼"-36UNS-2A

Materials

threaded sleeve: stainless steel (1.4305 / 303); polyester

Lens material

tempered optical glass

Displays / operating elements

Display

switching status	2 x LED, yellow
function display	7-segment LED display, 2-digit
measured values	7-segment LED display, 2-digit

Operating elements

3	pushbuttons

Accessories

Items supplied

lock nuts: 2

Accessories (optional)

fibre optics:, E35061 / E35062

Measuring head:, E35060

Remarks

MW = measured value

MEW = Final value of the measuring range

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12
