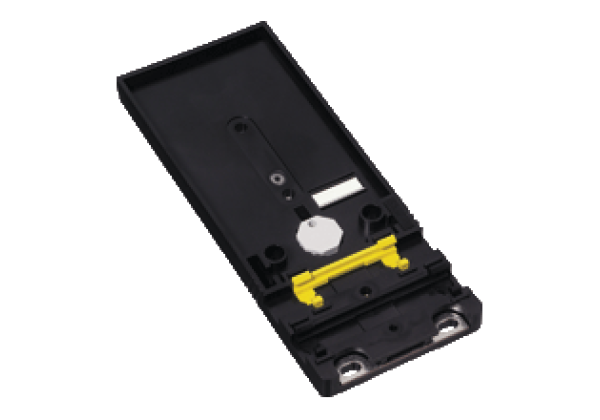

AS-Interface module mounting base U-G2FF
Brand: Pepperl+Fuchs
Code: U-G2FF
AS-Interface module mounting base for connection to flat cable (AS-Interface and external auxiliary power)
Datasheet excerpt: Technical data of U-G2FF
| Product Description |
|---|
| AS-Interface module mounting base for connection to flat cable (AS-Interface and external auxiliary power) |
| Ambient conditions | ||
|---|---|---|
| Ambient temperature | -25... 60 °C (-13... 140 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 according to EN 60529 (only in connection with module or cover) | |
| Connection | AS-Interface flat cable | |
| Material | ||
| Housing | PBT | |
| Dimensions | about 80, 45, 34 mm (L, W, H) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27274092 |
| ECLASS 12.0 | 27273792 |
| ECLASS 11.0 | 27273792 |
| ECLASS 10.0.1 | 27273792 |
| ECLASS 9.0 | 27273792 |
| ECLASS 8.0 | 27279212 |
| ECLASS 5.1 | 27279212 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
