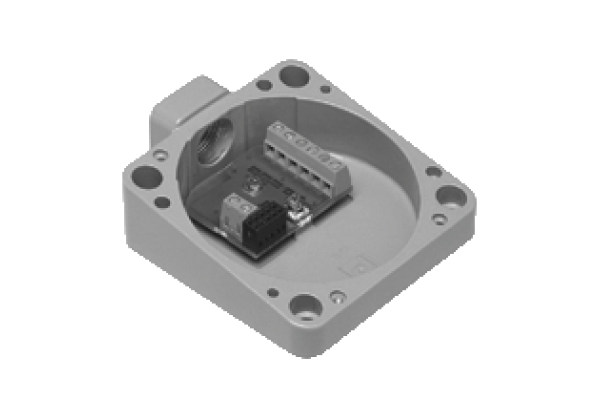

Base for read/write station U-P3-RX
Brand: Pepperl+Fuchs
Code: U-P3-RX
Base with serial interfaces RS 232 and RS 485
Datasheet excerpt: Technical data of U-P3-RX
| Product Description |
|---|
| Base with serial interfaces RS 232 and RS 485 |
| Electrical specifications | ||
|---|---|---|
| Rated operating voltage | 20... 30 V DC , ripple 10 %SS , PELV | |
| Power consumption | max. 4 W with read/write head IPT*-FP | |
| Galvanic isolation | ||
| Operating voltage/interface | functional insulation acc. to DIN EN 50178, rated insulation voltage 50 Veff | |
| Interface | ||
| Physical | RS-232/RS-485 | |
| Protocol | ASCII | |
| Transfer rate | 1200; 2400; 4800; 9600; 19200; 38400 | |
| Cable length | ≤ 15 m at RS 232 ≤ 1200 m at RS-485 | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 according to EN 60529 with IPT*-FP | |
| Connection | screw terminals | |
| Interface cable | 3 conductor, acc. to RS-232 or 2 acc. to RS-485 | |
| Supply | up to 3 x 1.5 mm2 | |
| Material | ||
| Housing | diecast aluminum | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280492 |
| ECLASS 12.0 | 27280490 |
| ECLASS 11.0 | 27280490 |
| ECLASS 10.0.1 | 27280490 |
| ECLASS 9.0 | 27280490 |
| ECLASS 8.0 | 27280490 |
| ECLASS 5.1 | 27279212 |
| ETIM 9.0 | EC002997 |
| ETIM 8.0 | EC002997 |
| ETIM 7.0 | EC002997 |
| ETIM 6.0 | EC002997 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
