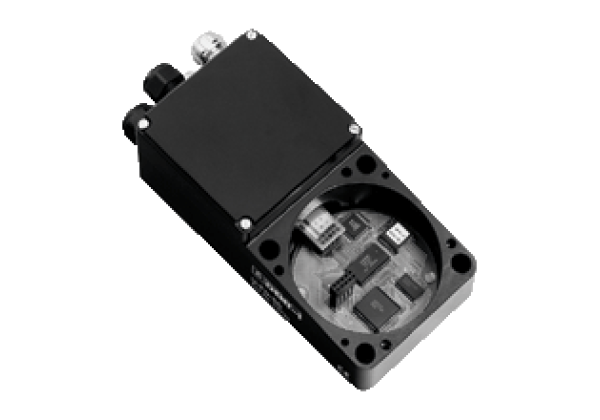

Base for read/write station U-P6-B6
Brand: Pepperl+Fuchs
Code: U-P6-B6
Base for PROFIBUS DP
Datasheet excerpt: Technical data of U-P6-B6
| Product Description |
|---|
| Base for PROFIBUS DP |
| Indicators/operating means | ||
|---|---|---|
| DIP switch | Setting the station address bus connection ON = active OFF = non-active | |
| Electrical specifications | ||
| Rated operating voltage | 20... 30 V DC , ripple 10 %SS , PELV | |
| Power consumption | max. 5 W with read/write head IPT*-FP | |
| Galvanic isolation | ||
| Operating voltage/interface | functional insulation acc. to DIN EN 50178, rated insulation voltage 50 Veff | |
| Interface | ||
| Physical | RS-485 | |
| Protocol | PROFIBUS DP acc. to EN 50170 | |
| Transfer rate | 9.6; 19.2; 93.75; 187.5; 500; 1500 kBit/s 3; 6; 12 Mbit/s self-synchronizing | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 according to EN 60529 with IPT*-FP | |
| Connection | screw terminals | |
| Interface cable | 2 x 0.64 mm2, double screened, acc. to PROFIBUS standard EN 50170 | |
| Supply | up to 3 x 1.5 mm2 | |
| Material | ||
| Housing | aluminum, black anodized | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280492 |
| ECLASS 12.0 | 27280490 |
| ECLASS 11.0 | 27280490 |
| ECLASS 10.0.1 | 27280490 |
| ECLASS 9.0 | 27280490 |
| ECLASS 8.0 | 27280490 |
| ECLASS 5.1 | 27279212 |
| ETIM 9.0 | EC002997 |
| ETIM 8.0 | EC002997 |
| ETIM 7.0 | EC002997 |
| ETIM 6.0 | EC002997 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
