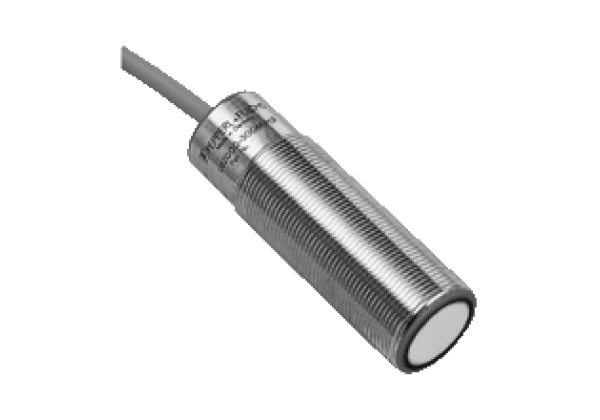

Ultrasonic sensor UB2000-30GM-H3
Brand: Pepperl+Fuchs
Code: UB2000-30GM-H3
Single head system, Separate evaluation, Direct detection mode, Series: -30GM, Operating voltage: 10... 30 V DC , ripple 10 %SS, Output type: 1 pulse output for echo run time, short-circuit proof
open collector PNP with pulldown resistor = 22 kOhm
level 0 (no echo): -UB
level 1 (echo detected): ≥ (+UB-2 V), UL approval: cULus Listed, General Purpose, CCC approval: CCC approval / marking not required for products rated ≤36 V
Datasheet excerpt: Technical data of UB2000-30GM-H3
| Product Description |
|---|
| Single head system |
| General specifications | ||
|---|---|---|
| Sensing range | 80... 2000 mm | |
| Adjustment range | 120... 2000 mm | |
| Dead band | 0... 80 mm 1) | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 180 kHz | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC , ripple 10 %SS | |
| No-load supply current | ≤ 30 mA | |
| Input | ||
| Input type | 1 pulse input for transmitter pulse (clock) 0-level (active): < 5 V (UB > 15 V) 1-level (inactive): > 10 V... +UB (UB > 15 V) 0-level (active): < 1/3 UB (10 V < UB < 15 V) 1-level (inactive): > 2/3 UB ... +UB (10 V < UB < 15 V) | |
| Pulse length | 20... 300 µs (typ. 200 µs) 2) | |
| Pause length | ≥ 50 x pulse length | |
| Impedance | 10 kOhm internal connected to +UB | |
| Output | ||
| Output type | 1 pulse output for echo run time, short-circuit proof open collector PNP with pulldown resistor = 22 kOhm level 0 (no echo): -UB level 1 (echo detected): ≥ (+UB-2 V) | |
| Rated operating current | 15 mA , short-circuit/overload protected | |
| Temperature influence | the echo propagation time: 0.17 % / K | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 85 °C (-13... 185 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Housing diameter | 30 mm | |
| Degree of protection | IP67 | |
| Connection | 2 m PVC cable 0.75 mm2 | |
| Material | ||
| Housing | nickel plated brass; plastic components: PBT | |
| Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam | |
| Mass | 300 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272803 |
| ECLASS 12.0 | 27272803 |
| ECLASS 11.0 | 27272803 |
| ECLASS 10.0.1 | 27272803 |
| ECLASS 9.0 | 27272803 |
| ECLASS 8.0 | 27272803 |
| ECLASS 5.1 | 27272803 |
| ETIM 9.0 | EC001849 |
| ETIM 8.0 | EC001849 |
| ETIM 7.0 | EC001849 |
| ETIM 6.0 | EC001849 |
| ETIM 5.0 | EC001847 |
| UNSPSC 12.1 | 41111960 |
