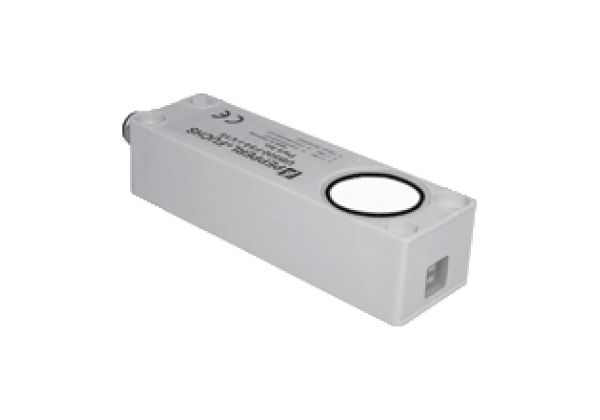

Ultrasonic sensor UB2000-F54-U-V15
Brand: Pepperl+Fuchs
Code: UB2000-F54-U-V15
Single head system, Analog output 0 ... 10 V, Measuring window adjustable, Program input, Series: -F54, Operating voltage: 15... 30 V DC , ripple 10 %SS, Output type: 1 analog output 0... 10 V, UL approval: cULus Listed, General Purpose, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug M12 x 1 , 5-pin, Housing: ABS
Datasheet excerpt: Technical data of UB2000-F54-U-V15
| Product Description |
|---|
| Single head system |
| General specifications | ||
|---|---|---|
| Sensing range | 80... 2000 mm | |
| Adjustment range | 100... 2000 mm | |
| Dead band | 0... 80 mm | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 175 kHz | |
| Response delay | ≤ 150 ms | |
| Indicators/operating means | ||
| LED green | solid green: monitoring system green flashing: program function | |
| LED yellow | solid yellow: object in the evaluation range yellow, flashing: program function, object detected | |
| LED red | flashing: normal mode: error Program function: no object detected permanently: Program mode, object uncertain | |
| Electrical specifications | ||
| Operating voltage | 15... 30 V DC , ripple 10 %SS | |
| No-load supply current | ≤ 55 mA | |
| Input/Output | ||
| Synchronization | 1 synchronous input 0-level: -UB...+1 V 1-level: +4 V...+UB input impedance: > 12 KOhm synchronization pulse: 0,1... 28 ms | |
| Synchronization frequency | ||
| Common mode operation | max. 33 Hz | |
| Multiplex operation | ≤ 33 / n Hz, n = number of sensors | |
| Input | ||
| Input type | 1 program input lower evaluation limit A1: -UB... +1 V, upper evaluation limit A2: +4 V... +UB input impedance: > 4.7 kΩ, pulse duration: ≥ 1 s | |
| Output | ||
| Output type | 1 analog output 0... 10 V | |
| Default setting | evaluation limit A1: 100 mm evaluation limit A2: 2000 mm | |
| Resolution | 0.47 mm | |
| Deviation of the characteristic curve | ± 1 % of full-scale value | |
| Repeat accuracy | ± 0.1 % of full-scale value | |
| Load impedance | ≥ 1 kOhm | |
| Temperature influence | ± 1.5 % of full-scale value | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector plug M12 x 1 , 5-pin | |
| Degree of protection | IP65 | |
| Material | ||
| Housing | ABS | |
| Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam | |
| Mass | 100 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272803 |
| ECLASS 12.0 | 27272803 |
| ECLASS 11.0 | 27272803 |
| ECLASS 10.0.1 | 27272803 |
| ECLASS 9.0 | 27272803 |
| ECLASS 8.0 | 27272803 |
| ECLASS 5.1 | 27272803 |
| ETIM 9.0 | EC001849 |
| ETIM 8.0 | EC001849 |
| ETIM 7.0 | EC001849 |
| ETIM 6.0 | EC001849 |
| ETIM 5.0 | EC001849 |
| UNSPSC 12.1 | 41111960 |
