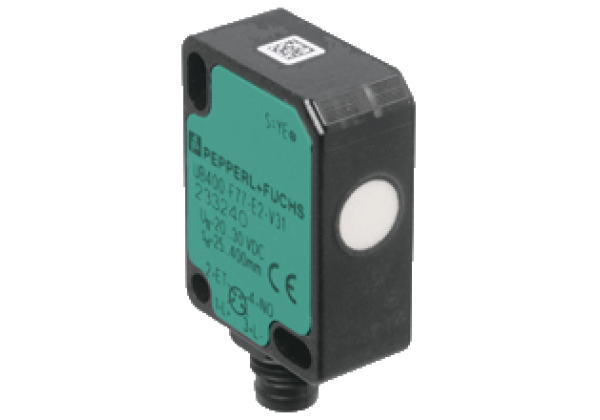

Ultrasonic direct detection sensor UB400-F77-E2-V31
Brand: Pepperl+Fuchs
Code: UB400-F77-E2-V31
Ultrasonic direct detection sensor, Miniature design, Program input, Degree of protection IP67, Series: -F77, Rated operating voltage: 24 V DC, Operating voltage: 20... 30 V DC , ripple 10 %SS ; 12... 20 V DC sensitivity reduced to 90 %, Output type: 1 switch output PNP, NO, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: M8 x 1 connector , 4-pin, Housing: Polycarbonate
Datasheet excerpt: Technical data of UB400-F77-E2-V31
| Product Description |
|---|
| Ultrasonic direct detection sensor |
| General specifications | ||
|---|---|---|
| Sensing range | 25... 400 mm | |
| Adjustment range | 40... 400 mm | |
| Dead band | 0... 25 mm | |
| Standard target plate | 20 mm x 20 mm | |
| Transducer frequency | approx. 300 kHz | |
| Response delay | ≤ 75 ms | |
| Limit data | ||
| Permissible cable length | max. 300 m | |
| Indicators/operating means | ||
| LED yellow | switching state and flashing: Teach-In | |
| Electrical specifications | ||
| Rated operating voltage | 24 V DC | |
| Operating voltage | 20... 30 V DC , ripple 10 %SS ; 12... 20 V DC sensitivity reduced to 90 % | |
| No-load supply current | ≤ 20 mA | |
| Time delay before availability | ≤ 150 ms | |
| Input | ||
| Input type | 1 program input | |
| Level | low level : 0... 0.7 V (Teach-In active) high level : UB or open input (Teach-In inactive) | |
| Input impedance | 16 kΩ | |
| Pulse length | ≥ 3 s | |
| Output | ||
| Output type | 1 switch output PNP, NO | |
| Rated operating current | 200 mA , short-circuit/overload protected | |
| Voltage drop | ≤ 2 V | |
| Repeat accuracy | ± 1 mm | |
| Switching frequency | 5 Hz | |
| Range hysteresis | typ. 4 mm | |
| Off-state current | ≤ 0.01 mA | |
| Temperature influence | 0.17 %/K | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Shock resistance | 30 g , 11 ms period | |
| Vibration resistance | 10... 55 Hz , Amplitude ± 1 mm | |
| Mechanical specifications | ||
| Connection type | M8 x 1 connector , 4-pin | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | Polycarbonate | |
| Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam | |
| Installation position | any position | |
| Mass | 10 g | |
| Tightening torque, fastening screws | max. 0.2 Nm | |
| Factory settings | ||
| Output | Switching point: 400 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272803 |
| ECLASS 12.0 | 27272803 |
| ECLASS 11.0 | 27272803 |
| ECLASS 10.0.1 | 27272803 |
| ECLASS 9.0 | 27272803 |
| ECLASS 8.0 | 27272803 |
| ECLASS 5.1 | 27272803 |
| ETIM 9.0 | EC001849 |
| ETIM 8.0 | EC001849 |
| ETIM 7.0 | EC001849 |
| ETIM 6.0 | EC001849 |
| ETIM 5.0 | EC001849 |
| UNSPSC 12.1 | 41111960 |
