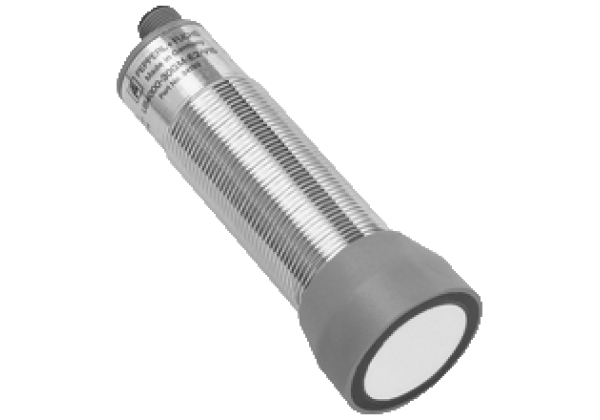

Ultrasonic sensor UB4000-30GM-E5-V15
Brand: Pepperl+Fuchs
Code: UB4000-30GM-E5-V15
Single head system, Switching output, 5 different output functions can be set, Program input, Series: -30GM, Operating voltage: 10... 30 V DC , ripple 10 %SS, Output type: 1 switch output PNP , Normally open/closed , programmable, UL approval: cULus Listed, General Purpose, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug M12 x 1 , 5-pin, Housing: nickel plated brass; plastic components: PBT
Datasheet excerpt: Technical data of UB4000-30GM-E5-V15
| Product Description |
|---|
| Single head system |
| General specifications | ||
|---|---|---|
| Sensing range | 200... 4000 mm | |
| Adjustment range | 240... 4000 mm | |
| Dead band | 0... 200 mm | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 85 kHz | |
| Response delay | approx. 325 ms | |
| Indicators/operating means | ||
| LED green | solid: Power-on flashing: program function object detected | |
| LED yellow | solid: switching state switch output flashing: program function | |
| LED red | normal operation: "fault" program function: no object detected | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC , ripple 10 %SS | |
| No-load supply current | ≤ 50 mA | |
| Input/Output | ||
| Synchronization | bi-directional 0 level -UB...+1 V 1 level: +4 V...+UB input impedance: > 12 KOhm synchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms | |
| Synchronization frequency | ||
| Common mode operation | max. 13 Hz | |
| Multiplex operation | ≤ 13 Hz / n , n = number of sensors , n ≤ 5 | |
| Input | ||
| Input type | 1 program input, operating range 1: -UB... +1 V, operating range 2: +4 V... +UB input impedance: > 4.7 kΩ; program pulse: ≥ 1 s | |
| Output | ||
| Output type | 1 switch output PNP , Normally open/closed , programmable | |
| Rated operating current | 200 mA , short-circuit/overload protected | |
| Voltage drop | ≤ 2.5 V | |
| Repeat accuracy | ≤ 0.5 % of switching point | |
| Switching frequency | ≤ 1.5 Hz | |
| Range hysteresis | 1 % of the set operating distance | |
| Temperature influence | < 2 % of far switch point | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector plug M12 x 1 , 5-pin | |
| Housing diameter | 40 mm | |
| Degree of protection | IP65 | |
| Material | ||
| Housing | nickel plated brass; plastic components: PBT | |
| Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam | |
| Mass | 180 g | |
| Factory settings | ||
| Output | Switch point A1: 550 mm Switch point A2: 4200 mm output function: Window mode output behavior: NO contact | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272803 |
| ECLASS 12.0 | 27272803 |
| ECLASS 11.0 | 27272803 |
| ECLASS 10.0.1 | 27272803 |
| ECLASS 9.0 | 27272803 |
| ECLASS 8.0 | 27272803 |
| ECLASS 5.1 | 27272803 |
| ETIM 9.0 | EC001849 |
| ETIM 8.0 | EC001849 |
| ETIM 7.0 | EC001849 |
| ETIM 6.0 | EC001849 |
| ETIM 5.0 | EC001849 |
| UNSPSC 12.1 | 41111960 |
