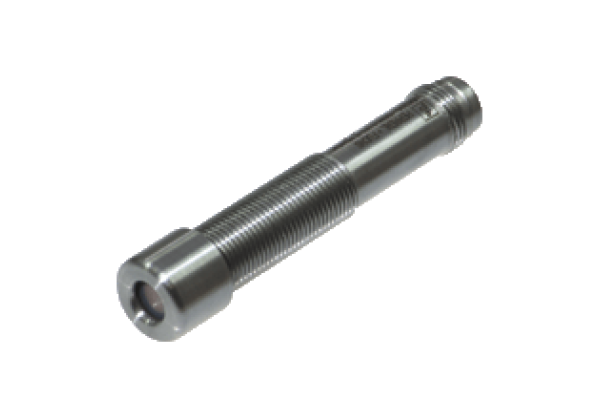

Ultrasonic sensor UBC250-12GM-E5-V1
Brand: Pepperl+Fuchs
Code: UBC250-12GM-E5-V1
High chemical resistance through PTFE coated transducer surface, Stainless Steel enclosure, 1 switch output, Series: -12GM, Operating voltage: 10... 30 V DC , ripple 10 %SS, Output type: 1 switch output PNP Normally open/closed , programmable, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug M12 x 1 , 4-pin
Datasheet excerpt: Technical data of UBC250-12GM-E5-V1
| General specifications | ||
|---|---|---|
| Sensing range | 30... 250 mm | |
| Adjustment range | 50... 250 mm | |
| Dead band | 0... 30 mm | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 310 kHz | |
| Response delay | approx. 50 ms | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC , ripple 10 %SS | |
| No-load supply current | ≤ 30 mA | |
| Input | ||
| Input type | 1 program input lower evaluation limit A1: -UB... +1 V, upper evaluation limit A2: +4 V... +UB input impedance: > 4.7 kΩ, pulse duration: ≥ 1 s | |
| Output | ||
| Output type | 1 switch output PNP Normally open/closed , programmable | |
| Rated operating current | 100 mA , short-circuit/overload protected | |
| Default setting | Switch point A1: 50 mm Switch point A2: 250 mm | |
| Voltage drop | ≤ 3 V | |
| Repeat accuracy | ≤ 1 % | |
| Switching frequency | ≤ 8 Hz | |
| Range hysteresis | 1 % of the set operating distance | |
| Temperature influence | ± 1.5 % of full-scale value | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector plug M12 x 1 , 4-pin | |
| Housing diameter | 12 mm | |
| Degree of protection | IP68 / IP69K | |
| Material | ||
| Housing | Stainless steel 1.4404 / AISI 316L O-ring for cover seal: Viton | |
| Transducer | PTFE (diaphragm surface) | |
| Mass | 35 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272803 |
| ECLASS 12.0 | 27272803 |
| ECLASS 11.0 | 27272803 |
| ECLASS 10.0.1 | 27272803 |
| ECLASS 9.0 | 27272803 |
| ECLASS 8.0 | 27272803 |
| ECLASS 5.1 | 27272803 |
| ETIM 9.0 | EC001849 |
| ETIM 8.0 | EC001849 |
| ETIM 7.0 | EC001849 |
| ETIM 6.0 | EC001849 |
| ETIM 5.0 | EC001849 |
| UNSPSC 12.1 | 41111960 |
