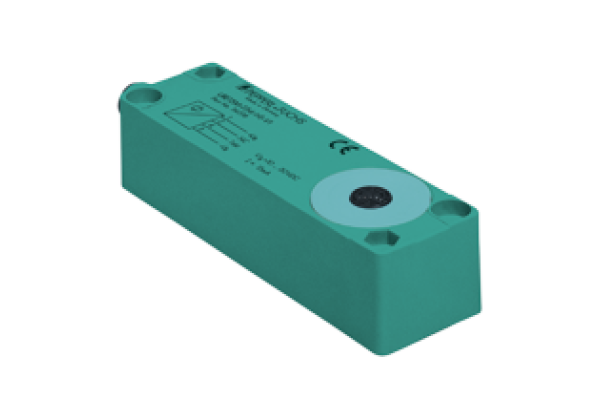

Ultrasonic sensor, receiver UBE15M-F54-H2-V1
Brand: Pepperl+Fuchs
Code: UBE15M-F54-H2-V1
Multi-head system, Large sensing range, Large possible lateral distance between emitter and receiver, Separate evaluation, Sensing range: 0... 15000 mm , emitter - receiver synchronised, Series: -F54, Operating voltage: 10... 30 V DC , ripple 10 %SS, Output type: 1 pulse output for echo run time, open collector NPN, short-circuit proof
0 level (active): UOL ≤ 2 V, IOL ≤ 15 mA
1 level (inactive): UOH = UB (pull-up R = 330 kOhm)
Datasheet excerpt: Technical data of UBE15M-F54-H2-V1
| Product Description |
|---|
| Multi-head system |
| General specifications | ||
|---|---|---|
| Sensing range | 0... 15000 mm , emitter - receiver synchronised | |
| Transducer frequency | approx. 40 kHz | |
| Opening angle | ± 45 ° at -6 dB | |
| Temperature drift of echo propagation delay | 0.2 %/K | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC , ripple 10 %SS | |
| No-load supply current | ≤ 15 mA (typ. 10 mA at UB = 24 V DC) | |
| Output | ||
| Output type | 1 pulse output for echo run time, open collector NPN, short-circuit proof 0 level (active): UOL ≤ 2 V, IOL ≤ 15 mA 1 level (inactive): UOH = UB (pull-up R = 330 kOhm) | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | 0... 50 °C (32... 122 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector plug M12 x 1 , 4-pin | |
| Degree of protection | IP30 | |
| Material | ||
| Housing | PBT | |
| Mass | 110 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272801 |
| ECLASS 12.0 | 27272801 |
| ECLASS 11.0 | 27272801 |
| ECLASS 10.0.1 | 27272801 |
| ECLASS 9.0 | 27272801 |
| ECLASS 8.0 | 27272801 |
| ECLASS 5.1 | 27272801 |
| ETIM 9.0 | EC001847 |
| ETIM 8.0 | EC001847 |
| ETIM 7.0 | EC001847 |
| ETIM 6.0 | EC001847 |
| ETIM 5.0 | EC001847 |
| UNSPSC 12.1 | 41111960 |
