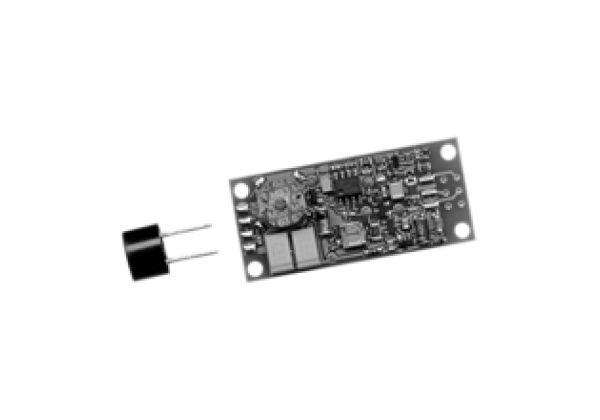

Ultrasonic sensor, transmitter UBE15M-H1
Brand: Pepperl+Fuchs
Code: UBE15M-H1
Multi-head system, Large sensing range, Large possible lateral distance between emitter and receiver, One or two transducers connectable, Sensing range: 0... 15000 mm , emitter - receiver synchronised, Operating voltage: 16... 30 V DC , ripple 10 %SS
8 V DC with reduced transmitting power, UL approval: cULus Listed, General Purpose, CSA approval: cCSAus Listed, General Purpose, CCC approval: CCC approval / marking not required for products rated ≤36 V
Datasheet excerpt: Technical data of UBE15M-H1
| Product Description |
|---|
| Multi-head system |
| General specifications | ||
|---|---|---|
| Sensing range | 0... 15000 mm , emitter - receiver synchronised | |
| Transducer frequency | approx. 40 kHz | |
| Opening angle | ± 45 ° at -6 dB | |
| Temperature drift of echo propagation delay | 0.2 %/K | |
| Electrical specifications | ||
| Operating voltage | 16... 30 V DC , ripple 10 %SS 8 V DC with reduced transmitting power | |
| No-load supply current | ≤ 10 mA (typ. 6 mA at UB = 24 V DC) | |
| Input | ||
| Input type | 1 pulse input for transmitter pulse, activation through open collector npn < 1.5 V: emitter active, > 3.5 V: emitter inactive | |
| Pulse length | 100 µs... 10 ms | |
| Pause length | ≥ 50 x pulse length | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | 0... 50 °C (32... 122 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP00 | |
| Connection | Contact plugs and soldering surfaces | |
| Mass | 20 g | |
| Dimensions | Printed circuit board: 45 mm x 20.2 mm (5 mm separable: 40 mm x 20.2 mm) overall height: 10 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272801 |
| ECLASS 12.0 | 27272801 |
| ECLASS 11.0 | 27272801 |
| ECLASS 10.0.1 | 27272801 |
| ECLASS 9.0 | 27272801 |
| ECLASS 8.0 | 27272801 |
| ECLASS 5.1 | 27272801 |
| ETIM 9.0 | EC001847 |
| ETIM 8.0 | EC001847 |
| ETIM 7.0 | EC001847 |
| ETIM 6.0 | EC001847 |
| ETIM 5.0 | EC001847 |
| UNSPSC 12.1 | 41111960 |
