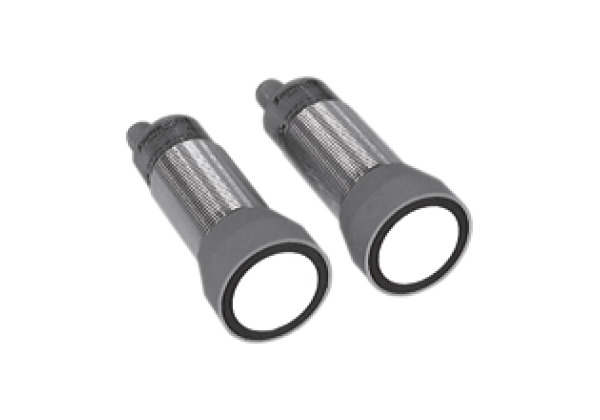

Through-beam ultrasonic barrier UBE4000-30GM-SA2-V15
Brand: Pepperl+Fuchs
Code: UBE4000-30GM-SA2-V15
Reliable detection of transparent materials, High switching frequency, Adjustable sensitivity, Through-beam mode: Single path ultrasonic switch, Sensing range: 0... 4000 mm , distance emitter-receiver 500 mm... 4000 mm, Series: -30GM, Operating voltage: 18... 30 V DC , ripple 10 %SS, Output type: 2 switch outputs PNP, normally open/closed (complementary), UL approval: cULus Listed, General Purpose, CSA approval: cCSAus Listed, General Purpose
Datasheet excerpt: Technical data of UBE4000-30GM-SA2-V15
| General specifications | ||
|---|---|---|
| Sensing range | 0... 4000 mm , distance emitter-receiver 500 mm... 4000 mm | |
| Through-beam mode | Single path ultrasonic switch | |
| Reference target | receiver | |
| Transducer frequency | 85 kHz | |
| Indicators/operating means | ||
| LED green | alignment aid OFF: no ultrasonic signal flashing: uncertain area ON: positive reception | |
| LED yellow | switching state | |
| Electrical specifications | ||
| Operating voltage | 18... 30 V DC , ripple 10 %SS | |
| No-load supply current | 35 mA emitter 25 mA receiver | |
| Output | ||
| Output type | 2 switch outputs PNP, normally open/closed (complementary) | |
| Rated operating current | 200 mA | |
| Voltage drop | ≤ 2.5 V | |
| Switch-on delay | 100... 3000 ms | |
| Switching frequency | ≤ 15 Hz | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | 0... 60 °C (32... 140 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 5-pin | |
| Degree of protection | IP65 | |
| Material | ||
| Housing | nickel plated brass; plastic components: PBT | |
| Mass | 160 g each sensor | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272801 |
| ECLASS 12.0 | 27272801 |
| ECLASS 11.0 | 27272801 |
| ECLASS 10.0.1 | 27272801 |
| ECLASS 9.0 | 27272801 |
| ECLASS 8.0 | 27272801 |
| ECLASS 5.1 | 27272801 |
| ETIM 9.0 | EC001847 |
| ETIM 8.0 | EC001847 |
| ETIM 7.0 | EC001847 |
| ETIM 6.0 | EC001847 |
| ETIM 5.0 | EC001847 |
| UNSPSC 12.1 | 41111960 |
