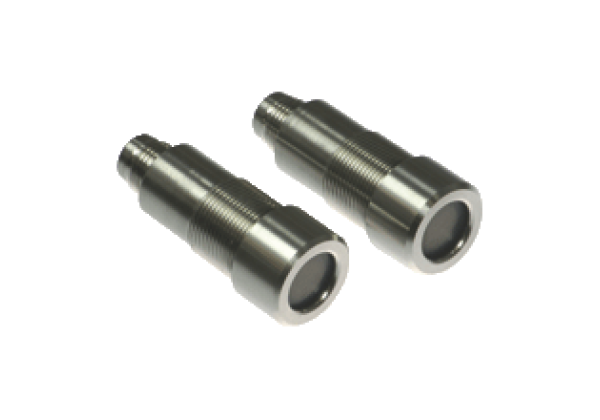

Through-beam ultrasonic barrier UBEC300-18GH40-SE2-V1
Brand: Pepperl+Fuchs
Code: UBEC300-18GH40-SE2-V1
Short design, 40 mm, Stainless steel housing, Chemical-resistant, Series: -18GM, Operating voltage: 10... 30 V DC , ripple 10 %SS, Output type: PNP, NO, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug M12 x 1 , 4-pin, Housing: Stainless steel 1.4435 / AISI 316L
O-ring for cover sealing: EPDM
Datasheet excerpt: Technical data of UBEC300-18GH40-SE2-V1
| General specifications | ||
|---|---|---|
| Sensing range | 100... 300 mm | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 255 kHz | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC , ripple 10 %SS | |
| No-load supply current | ≤ 20 mA | |
| Input | ||
| Input type | 1 program input [receiver] switch point 1: -UB... +1 V, switch point 2: +6 V... +UB input impedance: > 4.7 kΩ pulse duration: ≥ 1 s 1 test input [emitter] emitter deactivated: +6 V... +UB input impedance: > 4.7 kΩ | |
| Output | ||
| Output type | PNP, NO | |
| Rated operating current | 200 mA , short-circuit/overload protected | |
| Voltage drop | ≤ 3 V | |
| Switch-on delay | < 5 ms | |
| Switching frequency | ≤ 100 Hz | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector plug M12 x 1 , 4-pin | |
| Housing diameter | 18 mm | |
| Degree of protection | IP68 / IP69K | |
| Material | ||
| Housing | Stainless steel 1.4435 / AISI 316L O-ring for cover sealing: EPDM | |
| Transducer | PTFE (diaphragm surface) | |
| Mass | 25 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272801 |
| ECLASS 12.0 | 27272801 |
| ECLASS 11.0 | 27272801 |
| ECLASS 10.0.1 | 27272801 |
| ECLASS 9.0 | 27272801 |
| ECLASS 8.0 | 27272801 |
| ECLASS 5.1 | 27272801 |
| ETIM 9.0 | EC001847 |
| ETIM 8.0 | EC001847 |
| ETIM 7.0 | EC001847 |
| ETIM 6.0 | EC001847 |
| ETIM 5.0 | EC001847 |
| UNSPSC 12.1 | 41111960 |
