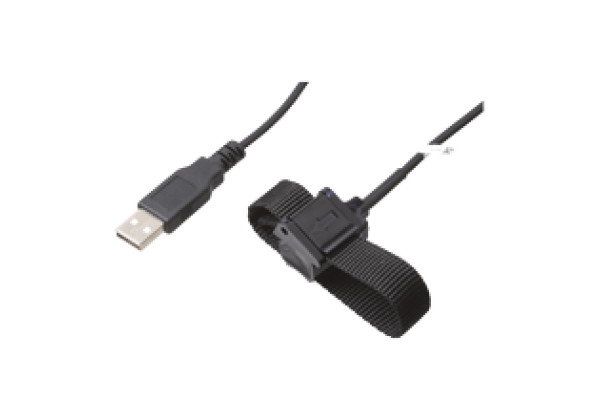

Interface cable UC-PROG-IR-USB
Brand: Pepperl+Fuchs
Code: UC-PROG-IR-USB
Interface cable for parameterization of sensors with IrDA interface
Datasheet excerpt: Technical data of UC-PROG-IR-USB
| Product Description |
|---|
| Interface cable for parameterization of sensors with IrDA interface |
| Indicators/operating means | ||
|---|---|---|
| LED green | USB communication active | |
| LED yellow | Infrared communication active | |
| Electrical specifications | ||
| Operating current | < 100 mA | |
| Interface 1 | ||
| Interface type | Infrared (to the sensor) | |
| Mode | point-to-point connection | |
| Interface 2 | ||
| Interface type | USB 2.0 or higher (to the PC) | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Shock resistance | 30 g , 11 ms period | |
| Vibration resistance | 10... 55 Hz , Amplitude ± 1 mm | |
| Mechanical specifications | ||
| Connection type | Cable connector with cable PUR , 3 m USB-Male Connector Typ A (Standard) | |
| Degree of protection | IP65 | |
| Material | black polycarbonate (PC) | |
| General information | ||
| Scope of delivery | Interface cable | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060311 |
| ECLASS 12.0 | 27060311 |
| ECLASS 11.0 | 27060311 |
| ECLASS 10.0.1 | 27060311 |
| ECLASS 9.0 | 27060311 |
| ECLASS 8.0 | 27279218 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
