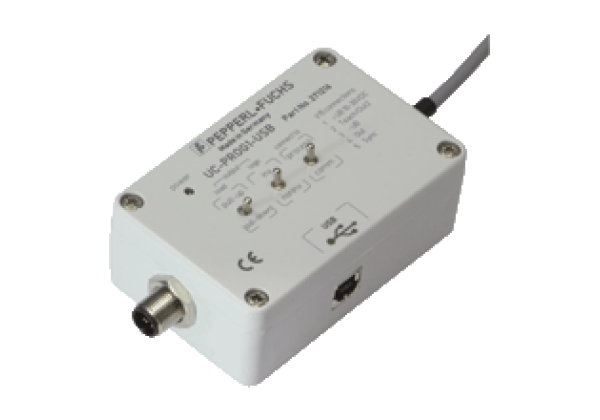

Programming adapter UC-PROG1-USB
Brand: Pepperl+Fuchs
Code: UC-PROG1-USB
Programming adapter, USB 2.0 interface, Simple insertion in the sensor connection lead
Datasheet excerpt: Technical data of UC-PROG1-USB
| Product Description |
|---|
| Programming adapter |
| Electrical specifications | ||
|---|---|---|
| Operating voltage | 10... 30 V DC, via sensor supply | |
| No-load supply current | Sensor Interface < 10 mA USB interface ≤ 50 mA | |
| General information | galvanically isolated | |
| Interface | ||
| Interface type | USB 2.0 | |
| Protocol | Serial Communication | |
| Transfer rate | max. 9.6 kBit/s | |
| Approvals and certificates | ||
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | USB: Square type B socket 5-pin, M12 x 1 connector Female cordset, M12, 5-pin, PVC cable | |
| Material | ||
| Housing | Polycarbonate | |
| Mass | 260 g | |
| Cable length | 2 m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060311 |
| ECLASS 12.0 | 27060311 |
| ECLASS 11.0 | 27060311 |
| ECLASS 10.0.1 | 27060311 |
| ECLASS 9.0 | 27060311 |
| ECLASS 8.0 | 27279218 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
