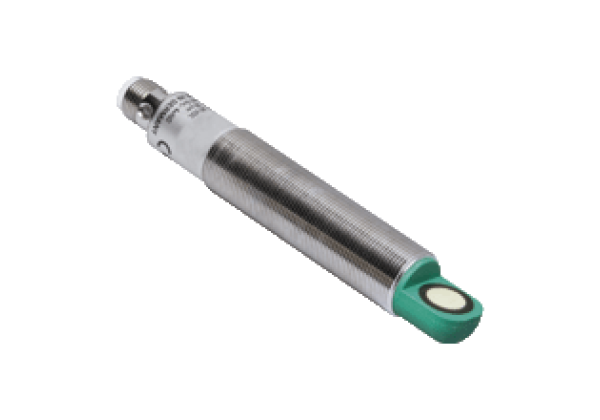

Ultrasonic sensor UC1000-18GM90A-E2-IO-V1
Brand: Pepperl+Fuchs
Code: UC1000-18GM90A-E2-IO-V1
Single head system, IO-Link interface for service and process data, Switching output, Temperature compensation, Series: -18GM, Rated operating voltage: 24 V DC, Operating voltage: 12... 30 V DC (including ripple), Interface type: IO-Link, Output type: 1 switch output PNP, NO (SIO mode), CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug M12 x 1 , 4-pin, Housing: brass, nickel-plated
Datasheet excerpt: Technical data of UC1000-18GM90A-E2-IO-V1
| Product Description |
|---|
| Single head system |
| General specifications | ||
|---|---|---|
| Sensing range | 100... 1000 mm | |
| Adjustment range | 110... 1000 mm | |
| Dead band | 0... 100 mm | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 200 kHz | |
| Response delay | approx. 100 ms | |
| Resolution | 1 mm | |
| Linearity | lateral | |
| Nominal ratings | ||
| Linearity error | ≤ ± 2 mm | |
| Temperature drift | ≤ ± 2.5 % | |
| Time delay before availability | ≤ 120 ms | |
| Limit data | ||
| Permissible cable length | max. 20 m | |
| Indicators/operating means | ||
| LED green | flashes: IO-Link ON | |
| LED yellow | on: object within measuring range | |
| Electrical specifications | ||
| Rated operating voltage | 24 V DC | |
| Operating voltage | 12... 30 V DC (including ripple) | |
| Ripple | ≤ 10 % | |
| No-load supply current | ≤ 50 mA | |
| Interface | ||
| Interface type | IO-Link | |
| Switching output | ||
| Output type | 1 switch output PNP, NO (SIO mode) | |
| Operating current | ≤ 200 mA , short-circuit/overload protected | |
| Switching frequency | 5 Hz | |
| Voltage drop | ≤ 2 V | |
| Off-state current | ≤ 0.01 mA | |
| Switch-on delay | ≤ 100 ms | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 | |
| Approvals and certificates | ||
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Shock resistance | 30 g , 11 ms period | |
| Vibration resistance | 10... 55 Hz , Amplitude ± 1 mm | |
| Mechanical specifications | ||
| Connection type | Connector plug M12 x 1 , 4-pin | |
| Housing diameter | 18 mm | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | brass, nickel-plated | |
| Transducer | epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT | |
| Installation position | any position | |
| Mass | 90 g | |
| Mounting | max. tightening torque: : 60 Nm | |
