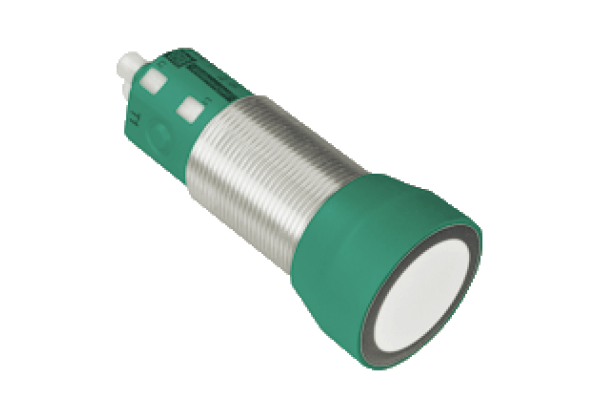

Ultrasonic sensor UC4000-30GM-2EP-IO-V15
Brand: Pepperl+Fuchs
Code: UC4000-30GM-2EP-IO-V15
Single head system, IO-Link interface for service and process data, Programmable via DTM with PACTWARE, 2 programmable switch outputs, Series: -30GM, Operating voltage: 10... 30 V DC , ripple 10 %SS, Interface type: IO-Link, Output type: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V
Datasheet excerpt: Technical data of UC4000-30GM-2EP-IO-V15
| Product Description |
|---|
| Single head system |
| General specifications | ||
|---|---|---|
| Sensing range | 200... 4000 mm | |
| Adjustment range | 240... 4000 mm | |
| Dead band | 0... 200 mm | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 85 kHz | |
| Response delay | minimum : 115 ms factory setting: 225 ms | |
| Memory | ||
| Non-volatile memory | EEPROM | |
| Write cycles | 100000 | |
| Indicators/operating means | ||
| LED green | solid: Power on flashing: Standby mode or IO link communication | |
| LED yellow 1 | solid: Object in evaluation range flashing: Learning function, object detected | |
| LED yellow 2 | solid: Object in evaluation range flashing: Learning function, object detected | |
| LED red | solid red: Error red, flashing: program function, object not detected | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC , ripple 10 %SS | |
| No-load supply current | ≤ 60 mA | |
| Power consumption | ≤ 1 W | |
| Time delay before availability | ≤ 150 ms | |
| Interface | ||
| Interface type | IO-Link | |
| Protocol | IO-Link V1.0 | |
| Transfer rate | Acyclical: typical 54 Bit/s | |
| Cycle time | min. 59.2 ms | |
| Mode | COM2 (38.4 kBit/s) | |
| Process data width | 16 bit | |
| SIO mode support | yes | |
| Input/Output | ||
| Input/output type | 1 synchronization connection, bidirectional | |
| 0 Level | 0... 1 V | |
| 1 Level | 4 V... UB | |
| Input impedance | > 12 kΩ | |
| Output rated operating current | < 12 mA | |
| Pulse length | 0.5... 300 ms (level 1) | |
| Pulse interval | ≥ 62 ms (level 0) | |
| Synchronization frequency | ||
| Common mode operation | ≤ 16 Hz | |
| Multiplex operation | ≤ 17 Hz / n , n = number of sensors , n ≤ 10 (factory setting: n = 5 ) | |
| Output | ||
| Output type | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected | |
| Rated operating current | 200 mA , short-circuit/overload protected | |
| Voltage drop | ≤ 2.5 V | |
| Repeat accuracy | ≤ 0.1 % of full-scale value | |
| Switching frequency | ≤ 2 Hz | |
| Range hysteresis | 1 % of the adjusted operating range (default settings), programmable | |
| Temperature influence | ≤ 1.5 % from full-scale value (with temperature compensation) ≤ 0.2 %/K (without temperature compensation) | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector plug M12 x 1 , 5-pin | |
| Housing diameter | 40 mm | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | Stainless steel 1.4305 / AISI 303 TPU Polyamides | |
| Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam | |
| Mass | 95 g | |
| Factory settings | ||
| Output 1 | near switch point: 240 mm far switch point: 4000 mm output function: Window mode output behavior: NO contact | |
| Output 2 | near switch point: 500 mm far switch point: 2000 mm output function: Window mode output behavior: NO contact | |
| Beam width | wide | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272803 |
| ECLASS 12.0 | 27272803 |
| ECLASS 11.0 | 27272803 |
| ECLASS 10.0.1 | 27272803 |
| ECLASS 9.0 | 27272803 |
| ECLASS 8.0 | 27272803 |
| ECLASS 5.1 | 27272803 |
| ETIM 9.0 | EC001849 |
| ETIM 8.0 | EC001849 |
| ETIM 7.0 | EC001849 |
| ETIM 6.0 | EC001849 |
| ETIM 5.0 | EC001849 |
| UNSPSC 12.1 | 41111960 |
