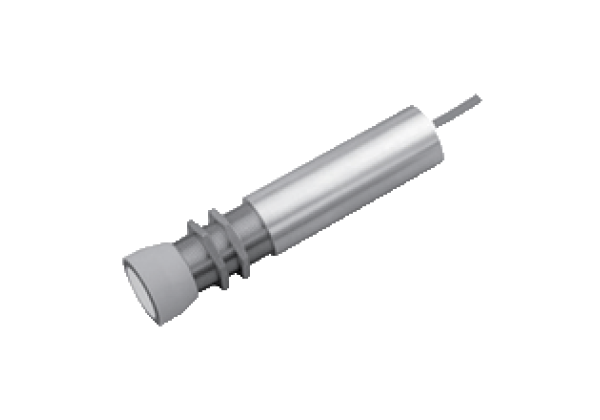

Ultrasonic sensor UC4000-30GM-IU-V1-HA
Brand: Pepperl+Fuchs
Code: UC4000-30GM-IU-V1-HA
Single head system, Parameterization interface for the application-specific adjustment of the sensor setting via the service program ULTRA 3000, Analog current and voltage output, Adjustable acoustic power and sensitivity, Series: -30GM, Operating voltage: 10... 30 V DC , ripple 10 %SS, Interface type: RS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit, Output type: 1 current output 4... 20 mA
1 voltage output 0... 10 V
Datasheet excerpt: Technical data of UC4000-30GM-IU-V1-HA
| Product Description |
|---|
| Single head system |
| General specifications | ||
|---|---|---|
| Sensing range | 200... 4000 mm | |
| Adjustment range | 240... 4000 mm | |
| Dead band | 0... 200 mm | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 85 kHz | |
| Response delay | 145 ms minimum 440 ms factory setting | |
| Indicators/operating means | ||
| LED green | solid: Power-on flashing: Standby mode or program function object detected | |
| LED yellow 1 | solid: object in evaluation range flashing: program function | |
| LED yellow 2 | solid: object in detection range flashing: program function | |
| LED red | solid: temperature/program plug not connected flashing: fault or program function object not detected | |
| Temperature/TEACH-IN connector | Temperature compensation , Evaluation range programming , output function setting | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC , ripple 10 %SS | |
| Power consumption | ≤ 900 mW | |
| Interface | ||
| Interface type | RS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit | |
| Input/Output | ||
| Synchronization frequency | ||
| Common mode operation | max. 13 Hz | |
| Multiplex operation | ≤ 13/n Hz, n = number of sensors | |
| Output | ||
| Output type | 1 current output 4... 20 mA 1 voltage output 0... 10 V | |
| Resolution | evaluation range [mm]/4000, but ≥ 0.35 mm | |
| Deviation of the characteristic curve | ≤ 0.2 % of full-scale value | |
| Repeat accuracy | ≤ 0.1 % of full-scale value | |
| Load impedance | current output: ≤ 500 Ohm voltage output: ≥ 1000 Ohm | |
| Temperature influence | ≤ 2 % from full-scale value (with temperature compensation) ≤ 0.2 %/K (without temperature compensation) | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 | |
| Approvals and certificates | ||
| UL approval | ||
| Ordinary Location | E87056 | |
| Hazardous Location | E199034 | |
| Control drawing | 116-0168 | |
| CSA approval | ||
| Ordinary Location | 1007121 | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Cable connector , M12 x 1 , 5-pin , 4-wire | |
| Housing diameter | 35 mm | |
| Degree of protection | IP65 | |
| Material | ||
| Housing | 1.4303 stainless steel plastic parts PBT | |
| Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam | |
| Note | Individual components: UC-4000-30GM-IUR2-V15; V1-G-2M-PVC; ADAPT-ALUM*-M30X1/2" NPT/HB**** | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272803 |
| ECLASS 12.0 | 27272803 |
| ECLASS 11.0 | 27272803 |
| ECLASS 10.0.1 | 27272803 |
| ECLASS 9.0 | 27272803 |
| ECLASS 8.0 | 27272803 |
| ECLASS 5.1 | 27272803 |
| ETIM 9.0 | EC001849 |
| ETIM 8.0 | EC001849 |
| ETIM 7.0 | EC001849 |
| ETIM 6.0 | EC001849 |
| ETIM 5.0 | EC001849 |
| UNSPSC 12.1 | 41111960 |
