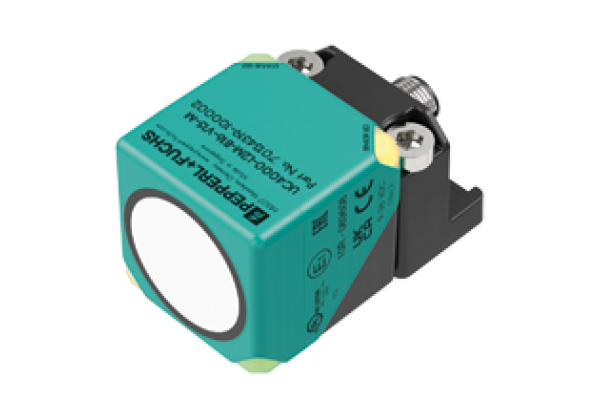

Ultrasonic sensor UC4000-L2M-B16-V15-M
Brand: Pepperl+Fuchs
Code: UC4000-L2M-B16-V15-M
Single head system, CANopen interface, E1-Type approval, High EMC resistance, Series: -L2M, Interface type: CAN, Communication protocol: CANopen, CCC approval: CCC approval / marking not required for products rated ≤36 V, UN/ECE Regulation No. 10 (E1): Type-approval number: 10R-069608, Connection type: Connector plug, Housing: PA-GF35, Threading: M12
Datasheet excerpt: Technical data of UC4000-L2M-B16-V15-M
| Product Description |
|---|
| Single head system |
| General specifications | ||
|---|---|---|
| Sensing range | 200... 4000 mm | |
| Dead band | 0... 200 mm | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 85 kHz | |
| Nominal ratings | ||
| Linearity error | < 40 mm | |
| Temperature drift | < +/- 100 mm | |
| Time delay before availability | ≤ 700 ms | |
| Functional safety related parameters | ||
| MTTFd | 431 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| LED yellow | object in evaluation range | |
| LED red/green | CANopen status display | |
| Electrical specifications | ||
| Operating voltage | 9... 30 V | |
| No-load supply current | ≤ 50 mA | |
| Power consumption | typ. 0.6 W | |
| Interface | ||
| Interface type | CAN | |
| Communication protocol | CANopen | |
| Process data | Input: 48 Bit - measured value (distance value) 16 Bit - signal quality 8 Bit - counter-1 16 Bit or counter-2 8 Bit - status register 8 Bit | |
| Node ID | programmable | |
| Vendor ID | 173 (0xAD) | |
| Product code | 50331651 (0x03000003) | |
| Transfer rate | 250 kBit/s , programmable 125... 1000 kBit/s | |
| Termination | external | |
| Cycle time | 53.5 ms preset , programmable | |
| Min. cycle time | 53.5 ms | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 | |
| Communication interface | CiA 310, Ver. 4.2.0 | |
| Approvals and certificates | ||
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| UN/ECE Regulation No. 10 (E1) | Type-approval number: 10R-069608 | |
| Ambient conditions | ||
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector plug | |
| Degree of protection | IP68 | |
| Material | ||
| Housing | PA-GF35 | |
| Connector | ||
| Threading | M12 | |
| Number of pins | 5 | |
| Mass | 180 g | |
| Factory settings | ||
| Default setting | counter-1 , 8 Bit | |
| Beam width | wide | |
| Synchronization | deactivated | |
| Node ID | 16 | |
| Transfer rate | 250 kBit/s | |
