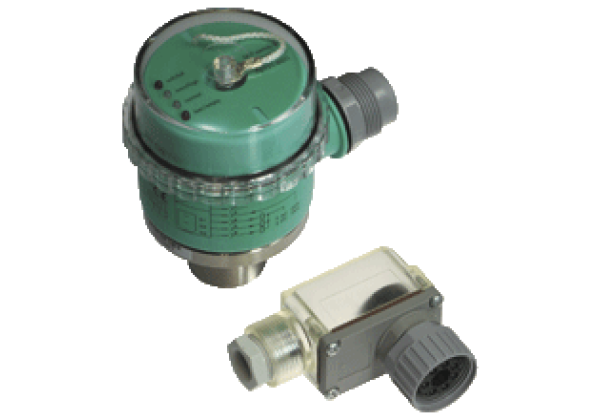

Ultrasonic sensor UC500-D1-3K-V7
Brand: Pepperl+Fuchs
Code: UC500-D1-3K-V7
Single head system, Specially for level monitoring in vessels, Large operating voltage range
10 V DC... 253 V DC
20 V AC... 253 V AC, 3 relay outputs, Series: -D1, Operating voltage: 10... 253 V DC
20... 253 V AC , 47... 63 Hz, Output type: 3 relay outputs, normally open/closed, selectable, CCC approval: self-declaration, Connection: Female connector, V7 (7-pin), 90°
Wire cross section: ≤1.5 mm2
cable diameter ∅7... 9 mm
Datasheet excerpt: Technical data of UC500-D1-3K-V7
| Product Description |
|---|
| Single head system |
| General specifications | ||
|---|---|---|
| Sensing range | 60... 550 mm | |
| Dead band | 0... 60 mm | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 380 kHz | |
| Response delay | > 10 s, relay < 1 s, LEDs | |
| Indicators/operating means | ||
| LED red | LED 1: overfill indication LED 4: underfill indication | |
| LED green/yellow | LED 2: overfill warning and normal operation LED 3: normal operation and underfill warning | |
| DIP switch | setting of the switch points/operating modes | |
| Electrical specifications | ||
| Operating voltage | 10... 253 V DC 20... 253 V AC , 47... 63 Hz | |
| No-load supply current | < 30 mA with UB = 30 V DC < 110 mA at UB = 10 V DC < 25 mA at UB = 220 V AC | |
| Output | ||
| Output type | 3 relay outputs, normally open/closed, selectable | |
| Range hysteresis | 20 mm | |
| Contact loading | 253 V AC/150V DC, 3 A (ohm. load) | |
| Life span | electrical: 105 switching cycles with ohmic load (3 A/253 V AC or 3 A/30 V DC) minimum contact load: 100 µA/100 mV DC mechanical: 20 x 106 switching cycles | |
| Temperature influence | < 4 % | |
| Fusing | ≤ 3 A Slow-blow fuse per output in accordance with IEC 60127-2 Sheet 5 required. Recommendation: after a short circuit, check that the device is functioning correctly. | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 | |
| Approvals and certificates | ||
| CCC approval | self-declaration | |
| Ambient conditions | ||
| Ambient temperature | -20... 60 °C (-4... 140 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Housing diameter | 75 mm | |
| Degree of protection | IP65 | |
| Connection | Female connector, V7 (7-pin), 90° Wire cross section: ≤1.5 mm2 cable diameter ∅7... 9 mm | |
| Material | ||
| Housing | cover: PC housing: PBT threaded flange: stainless steel installation connector/cable socket: PETP | |
| Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam | |
| Mass | 700 g | |
| Note | In case of loss or damage, the cable socket must be replaced by an identical cable socket (type V7-W) from Pepperl+Fuchs! | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272803 |
| ECLASS 12.0 | 27272803 |
| ECLASS 11.0 | 27272803 |
| ECLASS 10.0.1 | 27272803 |
| ECLASS 9.0 | 27272803 |
| ECLASS 8.0 | 27272803 |
| ECLASS 5.1 | 27272803 |
| ETIM 9.0 | EC001849 |
| ETIM 8.0 | EC001849 |
| ETIM 7.0 | EC001849 |
| ETIM 6.0 | EC001849 |
| ETIM 5.0 | EC001849 |
| UNSPSC 12.1 | 41111960 |
