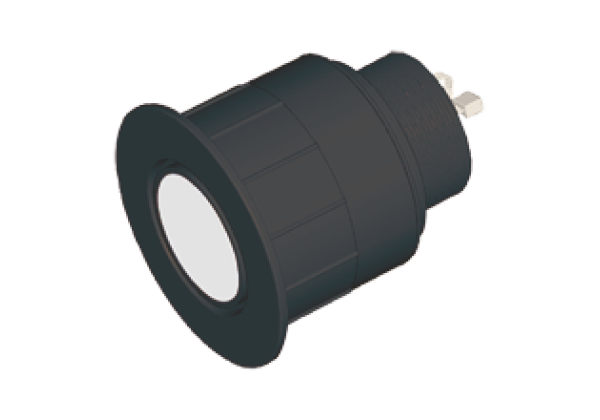

Ultrasonic sensor UC7000-50GK-B26-0,15M-Y
Brand: Pepperl+Fuchs
Code: UC7000-50GK-B26-0,15M-Y
Single head system, Thread M50, PTFE coated transducer, Physical LIN interface, Series: -50GK, Operating voltage: 8... 18 V DC , ripple 10 %SS, Interface type: Physical LIN interface, Connection type: fixed cable with plug, Housing: Polyester (GRP)
Datasheet excerpt: Technical data of UC7000-50GK-B26-0,15M-Y
| Product Description |
|---|
| Single head system |
| General specifications | ||
|---|---|---|
| Sensing range | 500... 7000 mm | |
| Dead band | 0... 500 mm | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 50 kHz | |
| Electrical specifications | ||
| Operating voltage | 8... 18 V DC , ripple 10 %SS | |
| No-load supply current | ≤ 20 mA at 12 V DC | |
| Power consumption | ≤ 250 mW in the measurement operating mode | |
| Time delay before availability | ≤ 165 ms | |
| Interface | ||
| Interface type | Physical LIN interface | |
| Transfer rate | 19.2 kBit/s (8N1) | |
| Cycle time | 150 ms | |
| Output | ||
| Resolution | 4 mm | |
| Repeat accuracy | ≤ 0.1 % of full-scale value | |
| Temperature influence | 3 % of full-scale value over the entire temperature range | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN IEC 60947-5-2:2020 : chapter 8.2.6.2.2, 8.2.6.2.3, 8.2.6.3 The sensor is designed to be supplied by a battery. The sensor signals are further processed in a control unit, which is also responsible for EMC protection. | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | fixed cable with plug | |
| Degree of protection | IP66 / IP67 ( connector excluded ) | |
| Material | ||
| Housing | Polyester (GRP) | |
| Enclosure cover | PBT | |
| Transducer | epoxy resin/hollow glass sphere mixture | |
| Connector | ||
| Type | JST connector: PHR-3 | |
| Number of pins | 3 | |
| Connection assembly | ||
| Cable | ||
| Cable diameter | 3 x 0.25 mm2 | |
| Material | PVC | |
| Length | 150 mm | |
| Mass | 380 g | |
| Factory settings | ||
| Output | Temperature compensation Address setting 7 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272803 |
| ECLASS 12.0 | 27272803 |
| ECLASS 11.0 | 27272803 |
| ECLASS 10.0.1 | 27272803 |
| ECLASS 9.0 | 27272803 |
| ECLASS 8.0 | 27272803 |
| ECLASS 5.1 | 27272803 |
| ETIM 9.0 | EC001849 |
| ETIM 8.0 | EC001849 |
| ETIM 7.0 | EC001849 |
| ETIM 6.0 | EC001849 |
| ETIM 5.0 | EC001849 |
| UNSPSC 12.1 | 41111960 |
