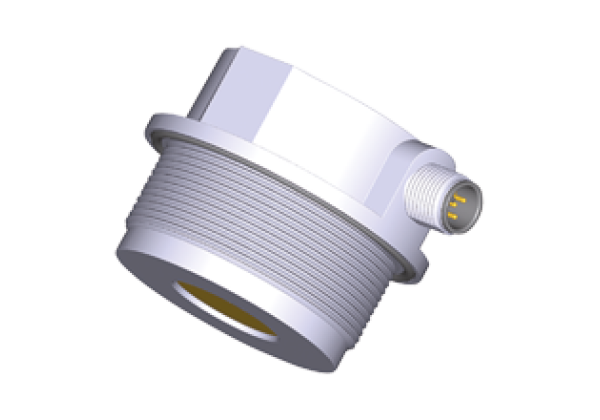

Ultrasonic sensor UCC2500-50GK-B26-V15-Y70117804
Brand: Pepperl+Fuchs
Code: UCC2500-50GK-B26-V15-Y70117804
Single head system, Thread M50, PTFE coated transducer, Serial Interfaces, Series: -50GK, Operating voltage: 3... 5.5 V DC
, Interface type: UART 3.3V, Connection type: Connector plug M12 x 1 , 5-pin, Housing: PBT
Datasheet excerpt: Technical data of UCC2500-50GK-B26-V15-Y70117804
| Product Description |
|---|
| Single head system |
| General specifications | ||
|---|---|---|
| Sensing range | 150... 2500 mm | |
| Dead band | 0... 150 mm | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 120 kHz | |
| Electrical specifications | ||
| Operating voltage | 3... 5.5 V DC | |
| No-load supply current | ≤ 70 mA at 3.3 V DC | |
| Power consumption | ≤ 250 mW in the measurement operating mode | |
| Time delay before availability | ≤ 70 ms | |
| Interface | ||
| Interface type | UART 3.3V | |
| Transfer rate | 19.2 kBit/s (8N1) | |
| Cycle time | 55 ms | |
| Resolution | 10 mm (corresponding to 1 LSB) | |
| Temperature influence | 4 % of full-scale value over the entire temperature range | |
| Input | ||
| Input type | Physical LIN interface | |
| Function | for Software Update/s | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN IEC 60947-5-2:2020 : chapter 8.2.6.2.2, 8.2.6.2.3, 8.2.6.3 The sensor is designed to be supplied by a battery. The sensor signals are further processed in a control unit, which is also responsible for EMC protection. | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector plug M12 x 1 , 5-pin | |
| Housing diameter | 60 mm / 50 mm | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | PBT | |
| Transducer | epoxy resin/hollow glass bead mixture; Polyurethane foam, PTFE coated | |
| Mass | 115 g | |
| Construction type | Cylindrical, thread M 50 | |
| Factory settings | ||
| Default setting | Temperature compensation Address setting 7 | |
| General information | ||
| Scope of delivery | Seal | |
