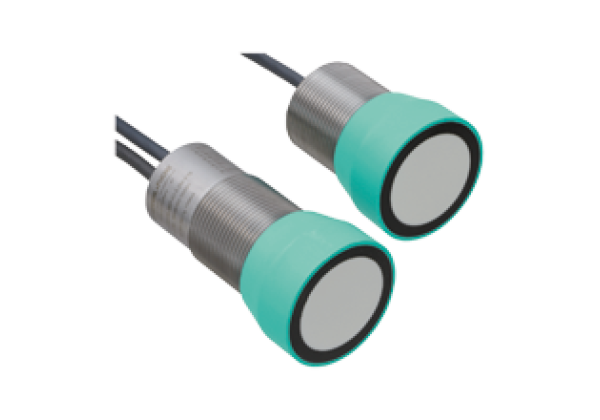

Double sheet sensor UDCM-30GS-3EP-IO-0,2M-V19
Brand: Pepperl+Fuchs
Code: UDCM-30GS-3EP-IO-0,2M-V19
Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, preferably sheet metal, Insensitive to printing, colors, and shining surfaces, Perpendicular or inclined sensor mounting relative to the sheet plane possible, Sensing range: 50... 150 mm , optimal distance: 80 mm, Thread mold: M30, Construction type: Cylindrical, thread, Series: -UDC, Interface type: IO-Link, Output type: Push-pull (4 in 1) output , NO contact ( programmable )
Datasheet excerpt: Technical data of UDCM-30GS-3EP-IO-0,2M-V19
| General specifications | ||
|---|---|---|
| Sensing range | 50... 150 mm , optimal distance: 80 mm | |
| Transducer frequency | approx. 85 kHz | |
| Memory | ||
| Non-volatile memory | EEPROM | |
| Write cycles | 300000 | |
| Indicators/operating means | ||
| LED green | indication: single sheet detected flashing (1 Hz) - standby mode flashing with short break (1 Hz) - IO-Link mode | |
| LED yellow | indication: no sheet detected (Air) | |
| LED red | indication: double sheet detected flashing: device error | |
| Electrical specifications | ||
| Operating voltage | 18... 30 V DC , ripple 10 %SS | |
| No-load supply current | ≤ 100 mA | |
| Power consumption | ≤ 1500 mW | |
| Time delay before availability | ≤ 300 ms | |
| Interface | ||
| Interface type | IO-Link | |
| IO-Link revision | 1.1 | |
| Device profile | Identification and Diagnosis - I&D | |
| Process data | Input: 16 Bit - measurement value 8 Bit - selected threshold set 2 Bit - switching signals 3 Bit Output: 8 Bit - threshold set 2 Bit - disable transducer 1 Bit | |
| Vendor ID | 1 (0x0001) | |
| Device ID | 3148294 (0x300A06) | |
| Transfer rate | COM1 (4.8 kbits/s) | |
| Min. cycle time | 22.4 ms | |
| SIO mode support | yes | |
| Compatible master port type | Class A (use adapter cable listed in accesories) Class B (use 3-pole adapter or 3-wire cable) | |
| Input/Output 1 | ||
| Designation | SYNC | |
| Input/output type | 1 synchronization connection, bidirectional | |
| 0 Level | 0... 1 V | |
| 1 Level | 2.5 V... UB | |
| Input impedance | > 22 kΩ | |
| Output rated operating current | current source < 2.5 mA | |
| Pulse length | 0.4... 6 ms with external control, low active | |
| Synchronization frequency | ||
| Common mode operation | ≤ 140 Hz | |
| Multiplex operation | ≤ 140 Hz /n, n = number of sensors , n ≤ 10 | |
| Input/Output 2 | ||
| Designation | IN2/FEEDBACK | |
| Input/output type | input or output programmable via IO-Link : input for selection of a threshold set (factory default) output as feedback output | |
| Input type | digital input | |
| Signal | 0-level: 0... + 1V 1-level: +UB - 1 V... +UB | |
| Input impedance | ≥ 60 kΩ | |
| Pulse length | ≥ 100 ms | |
| Output type | PNP | |
| Rated operating current | 8 mA | |
| Voltage drop | < 3 V | |
| Fusing | reverse polarity protected , overload and short-circuit protected | |
| Input | ||
| Designation | IN1/TEACH | |
| Input type | 0-level: 0... + 1V 1-level: +UB - 1 V... +UB | |
| Pulse length | ≥ 100 ms | |
| Impedance | ≥ 60 kΩ | |
| Output | ||
| Designation | OUT 1... 3 | |
| Number | 3 | |
| Output function | OUT 1: single sheet detected OUT 2: double sheet detected OUT 3: no sheet detected (air) | |
| Output type | Push-pull (4 in 1) output , NO contact ( programmable ) | |
| Rated operating current | 100 mA per output | |
| Voltage drop | ≤ 3 V | |
| Switch-on delay | 30 ms (programmable) | |
| Switch-off delay | 30 ms (programmable) | |
| Pulse extension | can be activated (100 ms or IO-Link cycle time) | |
| Fusing | reverse polarity protected , overload and short-circuit resistant | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 IEC 61131-9 / IO-Link V1.1.3 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | 0... 60 °C (32... 140 °F) | |
| Storage temperature | -25... 70 °C (-13... 158 °F) | |
| Mechanical specifications | ||
| Connection type | fixed cable with plug | |
| Housing length | ||
| Ultrasonic transmitter | 56 mm | |
| Ultrasonic receiver | 78 mm | |
| Housing diameter | ||
| Ultrasonic transmitter | 30 mm | |
| Ultrasonic receiver | 30 mm | |
| Degree of protection | IP65 | |
| Material | ||
| Housing | Stainless steel 1.4305/AISI 303, polyamide plastic parts | |
| Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam | |
| Connector | ||
| Threading | M12 x 1 | |
| Number of pins | 8 | |
| Cable | ||
| Cable diameter | 4.3 mm | |
| Bending radius | 5 x diameter , fixed | |
| Material | PUR | |
| Color | black | |
| Length | approx. 200 mm | |
| Mass | 300 g | |
| Tightening torque, fastening screws | max. 30 Nm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272801 |
| ECLASS 12.0 | 27272801 |
| ECLASS 11.0 | 27272801 |
| ECLASS 10.0.1 | 27272801 |
| ECLASS 9.0 | 27272801 |
| ECLASS 8.0 | 27272801 |
| ECLASS 5.1 | 27272801 |
| ETIM 9.0 | EC001847 |
| ETIM 8.0 | EC001847 |
| ETIM 7.0 | EC001847 |
| ETIM 6.0 | EC001847 |
| ETIM 5.0 | EC001847 |
| UNSPSC 12.1 | 41111960 |
