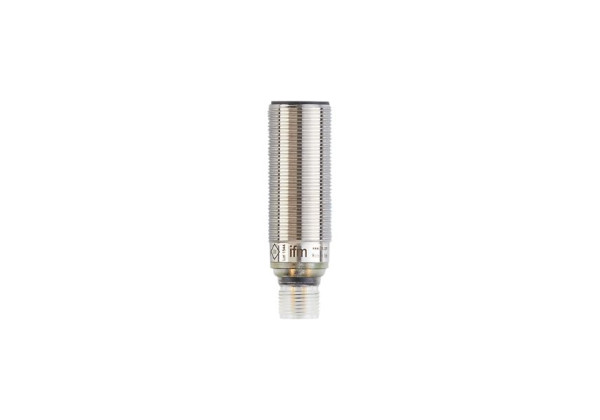

UGT508 Ultrasonic sensor UGB01200O2OG/US
Brand: IFM Electronic
Code: UGT508
- Particularly space-saving design for use where space is restricted
- Precise linearised voltage output
- Non-contact detection independent of colour, transparency or surface characteristics of the object
- Clearly visible LED for indicating switching status and echo
Product characteristics
| Sensing range [mm] | 80...1200; (Target: 200 x 200 mm) |
|---|---|
| Housing | threaded type |
| Dimensions [mm] | M18 x 1 / L = 60.5 |
Electrical data
| Operating voltage [V] | 10...30 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption [mA] | < 35 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | < 0.3 |
| Converter frequency [kHz] | 200 |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Inputs
| Synchronisation input | no |
|---|---|
| Multiplex input | no |
Outputs
| Total number of outputs | 1 |
|---|---|
| Number of analogue outputs | 1 |
| Analogue voltage output [V] | 0...10 |
| Min. load resistance [Ω] | 3000 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 80...1200; (Target: 200 x 200 mm) |
|---|---|
| Blind zone [mm] | 80 |
| Angle of aperture cylindrical [°] | 14; (±2) |
| Max. deviation from the 90° angle sensor/object [°] | ± 4 |
Accuracy / deviations
| Temperature compensation | yes |
|---|---|
| Hysteresis [%] | < 1 |
| Switch point drift [%] | -2.5...2.5 |
| Linearity error of analogue output [%] | < 1 |
| Resolution [mm] | 2 |
| Notes on the accuracy / deviation | The indicated values are reached after a warm-up time of min. 20 minutes |
Operating conditions
| Ambient temperature [°C] | -20...70 |
|---|---|
| Storage temperature [°C] | -30...80 |
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Vibration resistance |
| ||||||||||
| Shock resistance |
| ||||||||||
| MTTF [years] | 211 | ||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 79 |
|---|---|
| Housing | threaded type |
| Dimensions [mm] | M18 x 1 / L = 60.5 |
| Thread designation | M18 x 1 |
| Materials | stainless steel (1.4404 / 316L); PA; epoxy glass ceramics |
| Tightening torque [Nm] | 50 |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
Diagrams and graphs
| |
|
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — UGT508-00 — 13.04.2023 —
