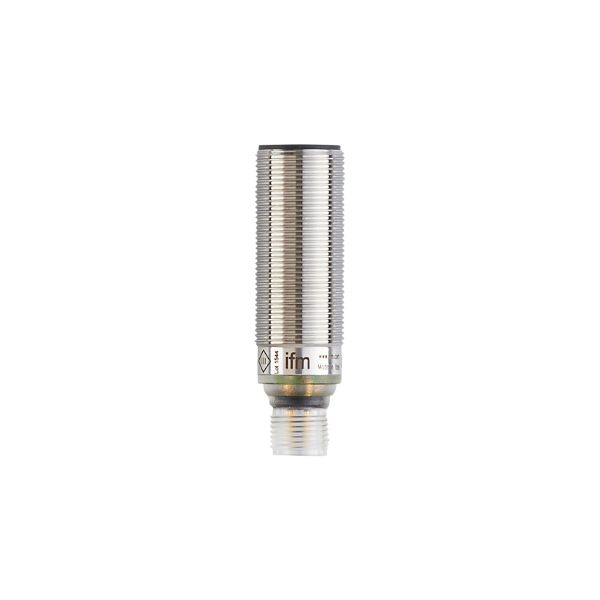

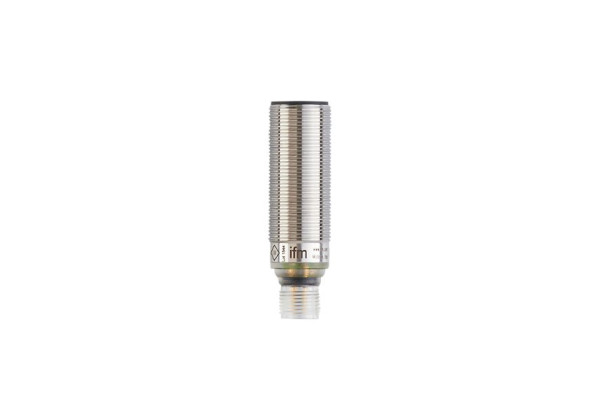

UGT528 Ultrasonic sensor UGB00300GOKG/IO-Link/US

Code: UGT528

Output function normally open / normally closed programmable
Clearly visible LED for indicating switching status and echo
Non-contact detection independent of colour, transparency or surface characteristics of the object
Particularly space-saving design for use where space is restricted

Product characteristics

Electrical design	PNP
Output function	normally open / normally closed; (parameterisable)
Sensing range [mm]	40...300; (Target: 200 x 200 mm)
Communication interface	IO-Link
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 60.5

Electrical data

Operating voltage [V]	10...30 DC; ("supply class 2" to cULus)
Current consumption [mA]	< 35
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 0.3
Converter frequency [kHz]	300

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Outputs

Total number of outputs	2
Electrical design	PNP
Number of digital outputs	2
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]	2.2
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	8
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	40...300; (Target: 200 x 200 mm)
Blind zone [mm]	40
Angle of aperture cylindrical [°]	15; (±2)
Max. deviation from the 90° angle sensor/object [°]	± 4

Accuracy / deviations

Temperature compensation	yes
Hysteresis [%]	< 1
Switch point drift [%]	-2...2
Repeatability	<0,7 %
Resolution [mm]	1
Notes on the accuracy / deviation	The indicated values are reached after a warm-up time of min. 20 minutes

Software / programming

Parameter setting options	hysteresis / window; second switch point; Switch-on and switch-off delay; switch-on operations; Teach function; light-on/dark-on mode

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Smart Sensor: Device Identification; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Process Data Variable; Device Diagnosis; Teach Channel

SIO mode

yes

Required master port type

Min. process cycle time [ms]

3.2

IO-Link process data (cyclical)

function	bit length
process value	16
device status	4
binary switching information	2

IO-Link functions (acyclical)

application specific tag; operating hours counter

Supported DeviceIDs

Type of operation	DeviceID
Default	889

Note

For further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature [°C]	-20...70
Storage temperature [°C]	-30...80
Protection	IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	3 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	3 V
EN 55011	Class A

Vibration resistance

EN 60068-2-6 Fc

(10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz

Shock resistance

EN 60068-2-27 Ea

30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes

MTTF [years]

202

UL approval

Ta	-20...70 °C
power supply	Class 2
File number UL	E174191

Mechanical data

Weight [g]	78
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 60.5
Thread designation	M18 x 1
Materials	stainless steel (1.4404 / 316L); PA; epoxy glass ceramics
Tightening torque [Nm]	50

Displays / operating elements

Display

switching status	2 x LED, yellow
echo	1 x LED, green

Accessories

Items supplied

lock nuts: 2, stainless steel

Remarks

operating voltage "supply class 2" according to cULus

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

1:	distance
2:	Detection zone
3:	switch-on/switch-off graph
4:	Target 100 x 100 mm
5:	50% of the target in the detection zone
6:	switch point
