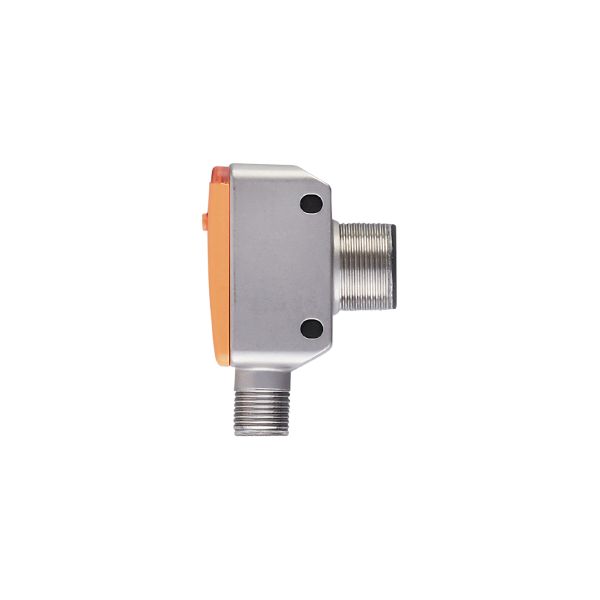

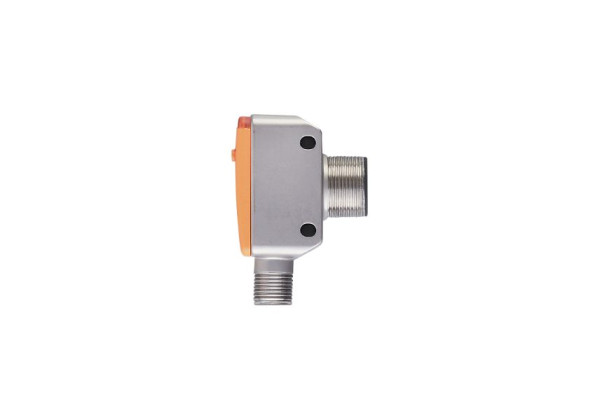

UGT587 - UGQ00300F2KG/US

Code: UGT587

Robust rectangular metal housing with M18 thread on the side
Particularly space-saving design for use where space is restricted
With programmable switching output and scalable analogue output
Non-contact detection independent of colour, transparency or surface characteristics of the object
Intuitive setting of the detection range via pushbutton

Product characteristics

Electrical design	NPN
Output function	normally open / normally closed; (parameterisable + 1x voltage output)
Sensing range [mm]	40...300; (Target: 100 x 100 mm)
Housing	rectangular with M18 thread
Dimensions [mm]	53 x 20 x 37.7

Electrical data

Operating voltage [V]	10...30 DC; ("supply class 2" to cULus)
Current consumption [mA]	< 35
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 0.3
Converter frequency [kHz]	300

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Electrical design	NPN
Number of digital outputs	1
Output function	normally open / normally closed; (parameterisable + 1x voltage output)
Max. voltage drop switching output DC [V]	2.2
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	8
Number of analogue outputs	1
Analogue voltage output [V]	0...10
Min. load resistance [Ω]	3000
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	40...300; (Target: 100 x 100 mm)
Blind zone [mm]	40
Angle of aperture cylindrical [°]	15; (±2)
Detection range hysteresis [mm]	< 1
Max. deviation from the 90° angle sensor/object [°]	± 4

Accuracy / deviations

Temperature compensation	yes
Hysteresis [%]	< 1
Switch point drift [%]	-5...5
Linearity error of analogue output [%]	≤ 1
Repeatability	1 %
Resolution [mm]	2
Notes on the accuracy / deviation	The indicated values are reached after a warm-up time of min. 20 minutes

Response times

Response time [ms]	< 450; (analogue output)

Operating conditions

Ambient temperature [°C]	-20...70
Storage temperature [°C]	-30...80
Protection	IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	3 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	3 V
EN 55011	Class A

Vibration resistance

EN 60068-2-6 Fc

(10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz

Shock resistance

EN 60068-2-27 Ea

30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes

MTTF [years]

191

UL approval

Ta	-20...70 °C
power supply	Class 2
File number UL	E174191

Mechanical data

Weight [g]	98
Housing	rectangular with M18 thread
Dimensions [mm]	53 x 20 x 37.7
Thread designation	M18 x 1
Materials	1.4542 (17-4 PH / 630); PBT; PA; epoxy glass ceramics
Tightening torque [Nm]	50

Displays / operating elements

Display

switching status	1 x LED, yellow
echo	1 x LED, green

Teach function

yes

Accessories

Items supplied

lock nuts: 1, stainless steel

Remarks

operating voltage "supply class 2" according to cULus

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

1:	distance
2:	Detection zone
3:	switch-on/switch-off graph
4:	Target 100 x 100 mm
5:	50% of the target in the detection zone
6:	switch point
