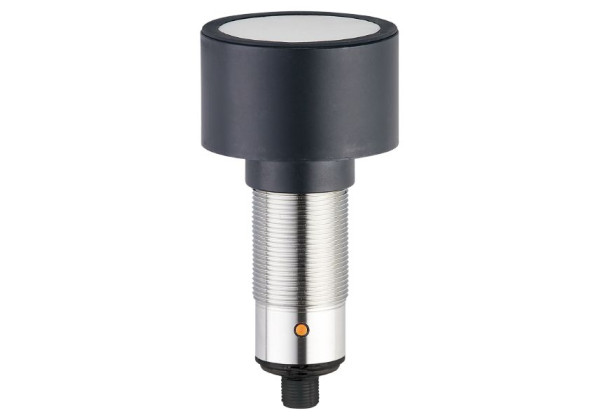

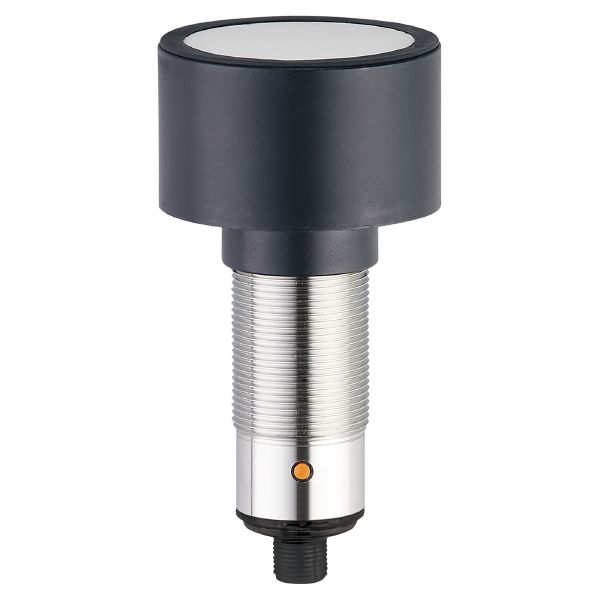

UIT507 - UIA08000E1KG/IO-Link/US
Brand: IFM Electronic
Code: UIT507
- Very large detection range
- Intuitive setting of the detection range via pushbutton or IO-Link
- Width of the sound beam adjustable via IO-Link
- Clearly visible LED for indicating switching status and echo
- With programmable switching output and scalable analogue output
- Non-contact detection independent of colour, transparency or surface characteristics of the object
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (parameterisable + 1x current output) |
| Sensing range [mm] | 600...8000; (Target: 1000 x 1000 mm) |
| Communication interface | IO-Link |
| Housing | threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 118.8 |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 30 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | < 0.3 |
| Converter frequency [kHz] | 40 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Electrical design | PNP |
| Number of digital outputs | 1 |
| Output function | normally open / normally closed; (parameterisable + 1x current output) |
| Max. voltage drop switching output DC [V] | 2.2 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 1 |
| Number of analogue outputs | 1 |
| Analogue current output [mA] | 4...20 |
| Max. load [Ω] | 500 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 600...8000; (Target: 1000 x 1000 mm) |
|---|---|
| Blind zone [mm] | 600 |
| Angle of aperture cylindrical [°] | 10; (±2) |
| Max. deviation from the 90° angle sensor/object [°] | ± 4 |
Accuracy / deviations
| Temperature compensation | yes |
|---|---|
| Hysteresis [%] | < 3 |
| Switch point drift [%] | -5...5 |
| Linearity error of analogue output [%] | <3 |
| Repeatability | 1 % |
| Resolution [mm] | 3 |
| Notes on the accuracy / deviation | The indicated values are reached after a warm-up time of min. 20 minutes |
Response times
| Response time [ms] | < 700; (analogue output) |
|---|
Software / programming
| Parameter setting options | hysteresis / window; second switch point; Switch-on and switch-off delay; switch-on operations; Teach function; light-on/dark-on mode |
|---|
Interfaces
| Communication interface | IO-Link | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||||||
| IO-Link revision | 1.1 | ||||||||
| SDCI standard | IEC 61131-9 | ||||||||
| Profiles | Smart Sensor: Device Identification; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Process Data Variable; Device Diagnosis; Teach Channel | ||||||||
| SIO mode | yes | ||||||||
| Required master port type | A | ||||||||
| Min. process cycle time [ms] | 3.2 | ||||||||
| IO-Link process data (cyclical) |
| ||||||||
| IO-Link functions (acyclical) | application specific tag; operating hours counter | ||||||||
| Supported DeviceIDs |
| ||||||||
| Note |
|
Operating conditions
| Ambient temperature [°C] | -20...70 |
|---|---|
| Storage temperature [°C] | -30...80 |
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Vibration resistance |
| ||||||||||
| Shock resistance |
| ||||||||||
| MTTF [years] | 107 | ||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 571.3 |
|---|---|
| Housing | threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 118.8 |
| Thread designation | M30 x 1.5 |
| Materials | stainless steel (1.4404 / 316L); PA; epoxy glass ceramics |
| Tightening torque [Nm] | 100 |
Displays / operating elements
| Display |
| ||||
|---|---|---|---|---|---|
| Teach function | yes |
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
Diagrams and graphs
| |
|
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — UIT507-00 — 13.04.2023 —
