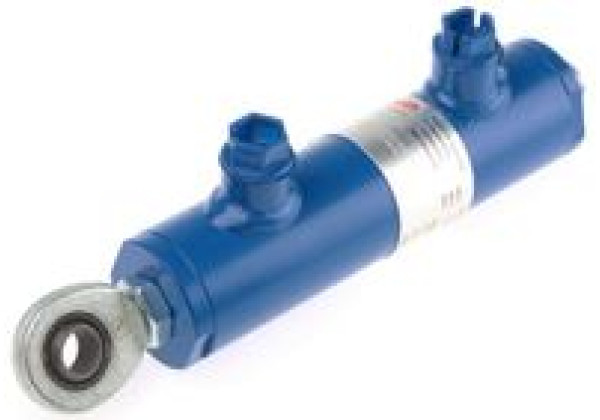

Bosch Rexroth Fixed Hydraulic Cylinder UK00827416
Brand: Bosch Rexroth
Code: UK00827416
Manufacturer Series = 1X Bore = 32mm Stroke Length = 50mm Closed Length = 243mm Extended Length = 293mm Pull Force = 8.79kN Flow Rate Out = 4.8L/min Flow Rate In = 3.3L/min Maximum Operating Pressure = 160 bar Weight = 550g Cleanliness - Maximum degree of contamination of the hydraulic fluid to NAS 1638 class 10. In order to achieve a longer service life, we recommend use of a filtration element with a minimum retention rate of B ;sub 10 ;/sub ≥ 75. 32-63mm Bore Hydraulic Cylinders. Carbon steel body Recommended hydraulic medium: Mineral oil based fluids NBR (Nitrile)/Polyurethane seals 240 bar Static Proof Pressure Hydraulic fluid operating temperature range: -20 to +80°C 160 bar working pressure |
