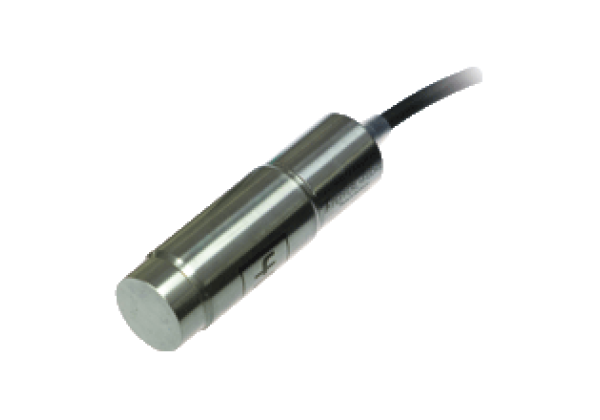

Ultrasonic sensor UMC3000-30H-E5-5M
Brand: Pepperl+Fuchs
Code: UMC3000-30H-E5-5M
Single head system, Front of transducer and housing manufactured entirely from stainless steel, Degree of protection IP68 / IP69K, Programmable via DTM with PACTWARE, Series: -30H, Operating voltage: 10... 30 V DC, Output type: 1 switching output E5, PNP NO/NC, programmable, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: cable PUR , 5 m, Housing: Stainless steel 1.4404 / AISI 316L
LED window: VMQ Elastosil LR 3003/Shore 50 A
Datasheet excerpt: Technical data of UMC3000-30H-E5-5M
| Product Description |
|---|
| Single head system |
| General specifications | ||
|---|---|---|
| Sensing range | 200... 3000 mm | |
| Adjustment range | 240... 3000 mm | |
| Dead band | 0... 200 mm | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 100 kHz | |
| Response delay | ≤ 200 ms | |
| Indicators/operating means | ||
| LED green | Operating display | |
| LED yellow | switching state | |
| LED red | error | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| No-load supply current | ≤ 50 mA | |
| Input/Output | ||
| Input/output type | 1 synchronization connection, bidirectional | |
| 0 Level | 0... 1 V | |
| 1 Level | 4 V... UB | |
| Input impedance | > 12 kΩ | |
| Output rated operating current | < 12 mA | |
| Pulse length | ≥ 200 µs | |
| Pulse interval | ≥ 2 ms | |
| Synchronization frequency | ||
| Common mode operation | ≤ 20 Hz | |
| Multiplex operation | ≤ 20/n Hz, n = number of sensors n ≤ 10 (factory setting: 5 ) | |
| Input | ||
| Input type | 1 program input | |
| Level (switch point 1) | 0... 1 V | |
| Level (switch point 2) | 4 V... UB | |
| Input impedance | > 10 kΩ | |
| Pulse length | 2... 5 s | |
| Output | ||
| Output type | 1 switching output E5, PNP NO/NC, programmable | |
| Rated operating current | 200 mA , short-circuit/overload protected | |
| Voltage drop | ≤ 2 V | |
| Repeat accuracy | ≤ 0.1 % of full-scale value | |
| Switching frequency | ≤ 2.8 Hz | |
| Range hysteresis | programmable , preset to 1 mm | |
| Temperature influence | < 1.5 % of full-scale value | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 | |
| Approvals and certificates | ||
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 60 °C (-13... 140 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | cable PUR , 5 m | |
| Core cross section | 5 x 0.5 mm2 | |
| Housing diameter | 30 mm | |
| Degree of protection | IP68 / IP69K | |
| Material | ||
| Housing | Stainless steel 1.4404 / AISI 316L LED window: VMQ Elastosil LR 3003/Shore 50 A | |
| Transducer | Stainless steel 1.4435 / AISI 316L | |
| Mass | 425 g | |
| Factory settings | ||
| Output | near switch point: 240 mm far switch point: 3000 mm output function: Window mode output behavior: NO contact | |
| General information | ||
| Supplementary information | Switch settings of the external programming adapter: "output load": pull-down "output logic": inv | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272803 |
| ECLASS 12.0 | 27272803 |
| ECLASS 11.0 | 27272803 |
| ECLASS 10.0.1 | 27272803 |
| ECLASS 9.0 | 27272803 |
| ECLASS 8.0 | 27272803 |
| ECLASS 5.1 | 27272803 |
| ETIM 9.0 | EC001849 |
| ETIM 8.0 | EC001849 |
| ETIM 7.0 | EC001849 |
| ETIM 6.0 | EC001849 |
| ETIM 5.0 | EC001849 |
| UNSPSC 12.1 | 41111960 |
