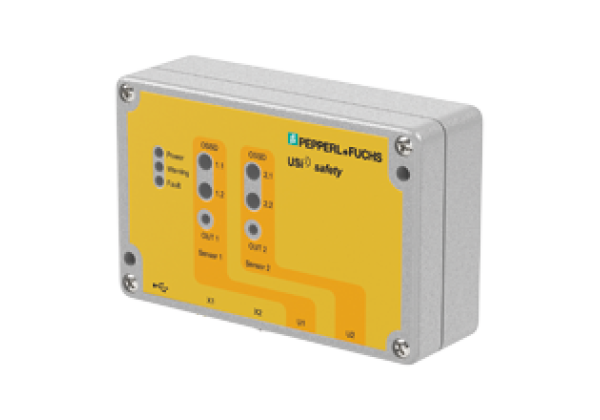

USi-safety evaluation unit USI-F262-2E5-V19-S2D3
Brand: Pepperl+Fuchs
Code: USI-F262-2E5-V19-S2D3
Evaluation unit exclusively for the ultrasonic sensor system USi-safety, Categorie 3 PL d (EN ISO 13849) for each ultrasonic transducer without redundancy, Multiple device installation possible, no mutual interference (no cross-talk), Safety outputs OSSD, Sensing range: 1... 250 cm
typ. 200 cm, Performance level (PL): PL d, Operating voltage: 21... 28 V DC
typ. 24 V DC, Interface type: USB 2.0, Output type: safety output OSSD
Normally closed, Power FET PNP
OSSD 1.1 and OSSD 1.2
Datasheet excerpt: Technical data of USI-F262-2E5-V19-S2D3
| Product Description |
|---|
| Evaluation unit exclusively for the ultrasonic sensor system USi-safety |
| General specifications | ||
|---|---|---|
| Type | USi-safety evaluation unit | |
| Sensing range | 1... 250 cm typ. 200 cm | |
| Adjustment range | 1... 250 cm | |
| Dead band | 1 cm | |
| Object size | typ. ∅ 1 cm | |
| Transducer frequency | typ. 103 kHz | |
| Resolution | 1 cm | |
| Target velocity | axial (max.): typ. 2 m/s (up to 2.5 m/s) | |
| Repeat accuracy | ± 0 cm | |
| Hysteresis | typ. 0 cm (0 up to SP1/10) | |
| Temperature influence | automatic or manual temperature compensation available , without temperature compensation: 0.17 %/K | |
| Functional safety related parameters | ||
| Performance level (PL) | PL d | |
| Category | Cat. 3 | |
| Reaction time | typ. 100 ms ( 99... 660 ms ) | |
| Recovery time | typ. 990 ms ( 330... 3300 ms ) | |
| MTTFd | 316 a | |
| Diagnostic Coverage (DC) | 87 % | |
| Electrical specifications | ||
| Fusing | 2 A , slow | |
| Operating voltage | 21... 28 V DC typ. 24 V DC | |
| No-load supply current | ≤ 150 mA | |
| Power consumption | max. 3.6 W | |
| Interface | ||
| Interface type | USB 2.0 | |
| Inputs | ||
| Input type | 2 inputs for ultrasonic transducers 1 input for temperature sensor | |
| Output 1 | ||
| Output type | safety output OSSD Normally closed, Power FET PNP OSSD 1.1 and OSSD 1.2 | |
| Switching voltage | max. UB | |
| Switching current | 150 mA per output | |
| Output 2 | ||
| Output type | safety output OSSD Normally closed, Power FET PNP OSSD 2.1 and OSSD 2.2 | |
| Switching current | 150 mA per output | |
| Output 3 | ||
| Output type | Normally open/normally closed switchable, Power FET PNP signal output OUT1 | |
| Switching voltage | max. UB | |
| Switching current | 150 mA | |
| Output 4 | ||
| Output type | Normally open/normally closed switchable, Power FET PNP signal output OUT2 | |
| Switching voltage | max. UB | |
| Switching current | 150 mA | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | IEC 60947-5-2 IEC 60204-1 EN ISO 13849 IEC 61326-3-1:2007 IEC/CISPR 11 group 1, class A | |
| Approvals and certificates | ||
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -30... 50 °C (-22... 122 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector plug | |
| Degree of protection | IP65 | |
| Connection | for power supply and outputs: connector plug M12, 8-pin, connection line max. 30 m for temperature sensor: socket M8, 6-pin for ultrasonic transducer: for each socket M8, 3-pin for parameterization: socket Mini USB | |
| Material | ||
| Housing | diecast aluminum | |
| Mass | 450 g | |
| Factory settings | ||
| Default setting | See the original instructions | |
