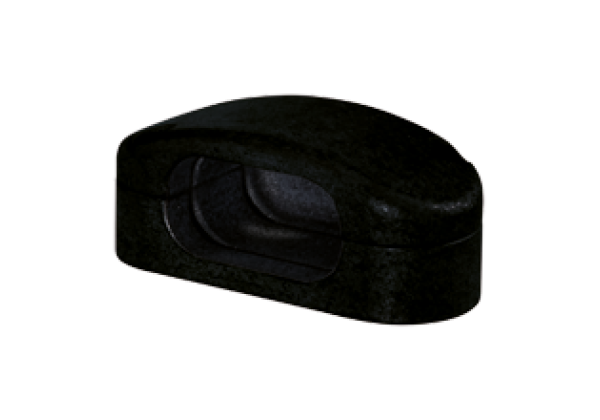

Mounting bracket USI-MH-27X13-H-01
Brand: Pepperl+Fuchs
Code: USI-MH-27X13-H-01
Horizontal mounting bracket exclusively for the USi-safety ultrasonic transducer, Screw mounting for simple installation, Robust construction
Datasheet excerpt: Technical data of USI-MH-27X13-H-01
| Product Description |
|---|
| Horizontal mounting bracket exclusively for the USi-safety ultrasonic transducer |
| Ambient conditions | ||
|---|---|---|
| Ambient temperature | -40... 80 °C (-40... 176 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | PA12 | |
| Mounting materials | 2 x cylinder head screw M5x12 (included with delivery) 2 x cylinder head screw M3x8 (included with delivery) | |
| Tightening torque, fastening screws | for screw M5 : max. 1.5 Nm for screw M3 : max. 0.5 Nm | |
| Dimensions | 25 mm x 54.3 mm x 22 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272892 |
| ECLASS 12.0 | 27272891 |
| ECLASS 11.0 | 27272891 |
| ECLASS 10.0.1 | 27272891 |
| ECLASS 9.0 | 27272891 |
| ECLASS 8.0 | 27272891 |
| ECLASS 5.1 | 27272891 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 41111960 |
