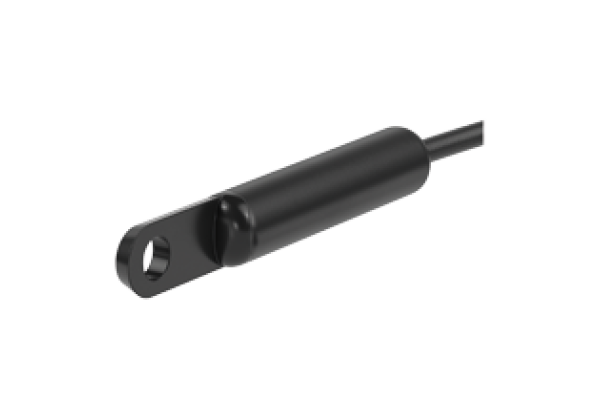

Temperature sensor USI-TEMP-1,5M-V312
Brand: Pepperl+Fuchs
Code: USI-TEMP-1,5M-V312
Temperature sensor exclusively for the USi-safety evaluation unit, Compact design, Universal orientation, Mounting holes for simple installation, Ambient temperature: movable cable: -25... 80 °C (-13... 176 °F)
fixed cable: -40... 80 °C (-40... 176 °F), Connection type: fixed cable with plug, Housing: TPU, Threading: M8 x 1
Datasheet excerpt: Technical data of USI-TEMP-1,5M-V312
| Product Description |
|---|
| Temperature sensor exclusively for the USi-safety evaluation unit |
| General specifications | ||
|---|---|---|
| Type | Temperature sensor | |
| Electrical specifications | ||
| Measuring resistor | NTC resistor 4.7 kΩ at 25 °C B value (B25/100) = 3980 K ±3% | |
| Ambient conditions | ||
| Ambient temperature | movable cable: -25... 80 °C (-13... 176 °F) fixed cable: -40... 80 °C (-40... 176 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | fixed cable with plug | |
| Housing diameter | 6.5 mm | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | TPU | |
| Connector | ||
| Threading | M8 x 1 | |
| Number of pins | 6 | |
| Material | PUR | |
| Cable | ||
| Cable diameter | 5 mm | |
| Bending radius | fixed cable: > 5 x cable diameter movable cable: > 10 x cable diameter | |
| Material | PUR | |
| Color | black | |
| Length | 1.5 m ± max. 40 mm | |
| Mass | 22 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272892 |
| ECLASS 12.0 | 27272891 |
| ECLASS 11.0 | 27272891 |
| ECLASS 10.0.1 | 27272891 |
| ECLASS 9.0 | 27272891 |
| ECLASS 8.0 | 27272891 |
| ECLASS 5.1 | 27272891 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 41111960 |
