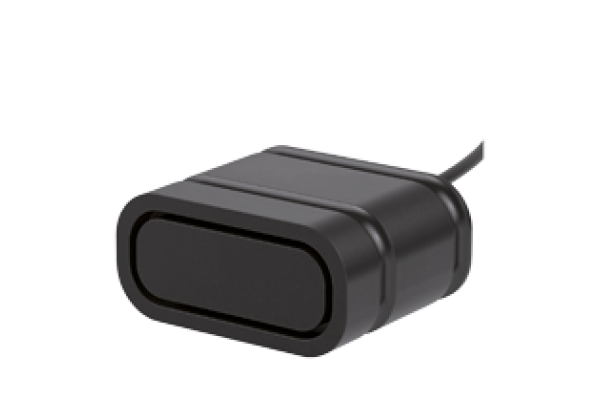

Ultrasonic transducer USI2500-27X13E-3M-V3
Brand: Pepperl+Fuchs
Code: USI2500-27X13E-3M-V3
Ultrasonic transducer with cable 3 m, exclusively for the USi-safety evaluation unit , Extremely compact dimensions, Elliptic sound cone, 3 m cable length
Datasheet excerpt: Technical data of USI2500-27X13E-3M-V3
| Product Description |
|---|
| Ultrasonic transducer with cable 3 m, exclusively for the USi-safety evaluation unit |
| General specifications | ||
|---|---|---|
| Type | Ultrasonic transducer | |
| Ambient conditions | ||
| Ambient temperature | -40... 80 °C (-40... 176 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | fixed cable with plug | |
| Degree of protection | IP69 for the front surface , otherwise IP67 | |
| Material | ||
| Housing | PA 6.6 | |
| Transducer | PBT , silicone | |
| Connector | ||
| Threading | M8 x 1 | |
| Number of pins | 3 | |
| Material | PUR | |
| Cable | ||
| Cable diameter | 2 mm | |
| Bending radius | fixed cable: > 5 x cable diameter | |
| Tension force | max. 20 N | |
| Material | PUR | |
| Color | black | |
| Length | 3 m | |
| Mass | 35 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272803 |
| ECLASS 12.0 | 27272803 |
| ECLASS 11.0 | 27272803 |
| ECLASS 10.0.1 | 27272803 |
| ECLASS 9.0 | 27272803 |
| ECLASS 8.0 | 27272803 |
| ECLASS 5.1 | 27272803 |
| ETIM 9.0 | EC001849 |
| ETIM 8.0 | EC001849 |
| ETIM 7.0 | EC001849 |
| ETIM 6.0 | EC001849 |
| ETIM 5.0 | EC001849 |
| UNSPSC 12.1 | 41111960 |
