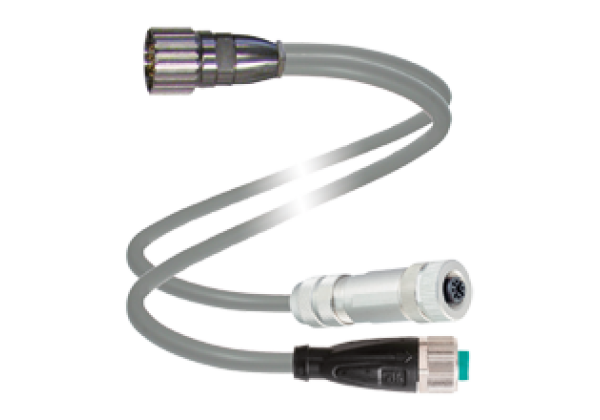

Y connection cable V1/15B-G-0,3M-LIHCH-TP-T-V23-G
Brand: Pepperl+Fuchs
Code: V1/15B-G-0,3M-LIHCH-TP-T-V23-G
Y connection cable M23 plug straight A-coded 12-pin to M12 socket straight 5-pin B-coded / M12 socket 4-pin straight A-coded, PUR cable grey, shielded
Datasheet excerpt: Technical data of V1/15B-G-0,3M-LIHCH-TP-T-V23-G
| Product Description |
|---|
| Y connection cable M23 plug straight A-coded 12-pin to M12 socket straight 5-pin B-coded / M12 socket 4-pin straight A-coded, PUR cable grey, shielded |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | socket | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 5 | |
| Coding | B-coded | |
| Connector 2 | ||
| Connection | socket | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Connector 3 | ||
| Connection | plug | |
| Construction type | M23 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 12 | |
| Coding | A-coded | |
| Electrical specifications | ||
| Operating voltage | max. 30 V AC/DC | |
| Operating current | max. 2 A | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 | |
| Halogen-free | DIN VDE 0472-815 DIN EN 50267-2-1 | |
| Ambient conditions | ||
| Ambient temperature | ||
| Connector 1 | -40... 85 °C (-40... 185 °F) | |
| Connector 2 | -40... 90 °C (-40... 194 °F) | |
| Connector 3 | -40... 125 °C (-40... 257 °F) | |
| Cable, fixed | -40... 80 °C (-40... 176 °F) | |
| Cable, flexing | -25... 80 °C (-13... 176 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Connector 1 | ||
| Tightening torque | 0.6 Nm | |
| Tool installation | straight knurling , hexagon nut SW = 18 mm | |
| Mating cycles | min. 50 | |
| Shielding | shield connected to screw connection | |
| Degree of protection | IP67 | |
| Connector 2 | ||
| Tightening torque | 0.6 Nm | |
| Loosening protection | available | |
| Tool installation | straight knurling , hexagon nut SW = 14 mm | |
| Mating cycles | min. 100 | |
| Shielding | none | |
| Degree of protection | IP68 / IP69 | |
| Connector 3 | ||
| Tool installation | straight knurling , hexagon nut SW = 27 mm | |
| Mating cycles | min. 1000 | |
| Shielding | shield connected to screw connection | |
| Degree of protection | IP67 / IP68 / IP69 | |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 | |
| Sheath diameter | 4.8 mm | |
| Bending radius | > 10 x cable diameter, moving > 5 x cable diameter, fixed | |
| Sheath stripping force | max. 100 N / 300 mm | |
| Sheath color | grey (similar to RAL 7001) | |
| Number of cores | 4 | |
| Core cross section | 0.34 mm2 | |
| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black | |
| Core construction | 19 x 0.15 mm ∅ | |
| Shield | tinned copper braiding, 85 % coverage | |
| Length | 0.3 m | |
| Cable code | Li 9Y 11YM 4 x 0.34 | |
| Material | ||
| Halogen-free | yes | |
| Connector 1 | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | Zinc diecast, nickel-plated | |
| Contact surface | Au | |
| Connector 2 | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | TPU, black | |
| Seal | FKM | |
| Contact surface | Au | |
| Flammability | V-2 | |
| Connector 3 | ||
| Screw connection | Diecast zinc | |
| Body | Diecast zinc | |
| Contact surface | Au | |
| Cable | ||
| Sheathing | PUR based on polyether | |
| Core insulation | PP | |
| Chemical resistance | good | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440106 |
| ECLASS 12.0 | 27440106 |
| ECLASS 11.0 | 27440112 |
| ECLASS 10.0.1 | 27440112 |
| ECLASS 9.0 | 27440106 |
| ECLASS 8.0 | 27440312 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002585 |
| ETIM 8.0 | EC002585 |
| ETIM 7.0 | EC002585 |
| ETIM 6.0 | EC002585 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
