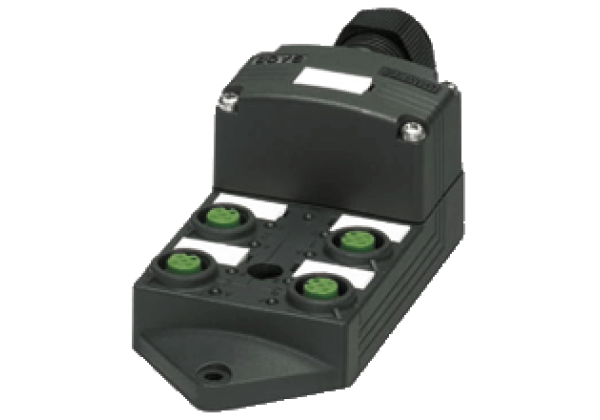

Splitter boxes V1-4/8A-E2
Brand: Pepperl+Fuchs
Code: V1-4/8A-E2
Splitter box quadruple, twin configuration, with cage-clamp terminals
Datasheet excerpt: Technical data of V1-4/8A-E2
| Product Description |
|---|
| Splitter box quadruple, twin configuration, with cage-clamp terminals |
| General specifications | ||
|---|---|---|
| Number of pins | 5 | |
| UL File Number | E191152 | |
| Indicators/operating means | ||
| LED green | supply voltage each module | |
| LED yellow | I/O status indication | |
| Electrical specifications | ||
| Operating voltage | max. 24 V DC -20 % / +25 % | |
| Operating current | ≤ 5 mA per channel indication element | |
| Current loading capacity | ≤ 2 A per channel, ≤ 4 A per plug-in station, ≤ 8 A total current per distributor | |
| Output | ||
| Number/Type | 4 , twin configuration | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Flammability | UL 94 | |
| Ambient conditions | ||
| Ambient temperature | -25... 80 °C (-13... 176 °F) | |
| Mechanical specifications | ||
| Connection type | 4 x socket M12 x 1 5-pin 1 x terminal compartment | |
| Degree of protection | IP65/IP67 | |
| Connection | Signal and energy: Cage tension spring terminals flexible: 0.2 mm2... 1 mm2 rigid: 0.2 mm2... 1.5 mm2 Sensor/actuator: 5-pin, M12 x 1 socket | |
| Material | ||
| Contacts | Cu alloy | |
| Contact surface | Au | |
| Housing | PBT | |
| Threaded bushings | PBT | |
| Seal | O-ring: NBR | |
| Cable | ||
| Sheath diameter | 7 mm ... 12 mm | |
| Flammability | V-0 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440111 |
| ECLASS 12.0 | 27440111 |
| ECLASS 11.0 | 27440111 |
| ECLASS 10.0.1 | 27440111 |
| ECLASS 9.0 | 27440108 |
| ECLASS 8.0 | 27279219 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC003558 |
| ETIM 8.0 | EC003558 |
| ETIM 7.0 | EC003558 |
| ETIM 6.0 | EC002585 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31261501 |
