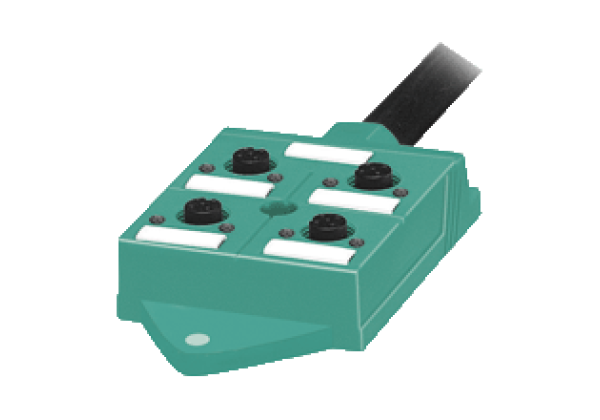

Splitter boxes V1-4A-E-5M-PUR

Code: V1-4A-E-5M-PUR

Quadruple splitter box with M12 connector with basic cable, NPN

Datasheet excerpt: Technical data of V1-4A-E-5M-PUR

Product Description
Quadruple splitter box with M12 connector with basic cable, NPN

General specifications
Number of pins		4
UL File Number		E191152
Indicators/operating means
LED green		supply voltage each module
LED yellow		I/O status indication
Electrical specifications
Operating voltage		24 V DC, max. 30 V DC
Operating current		≤ 5 mA per channel indication element
Current loading capacity		≤ 2 A per channel, ≤ 4 A per plug-in station, ≤ 12 A total current per separator
Output
Number/Type		4
Compliance with standards and directives
Standard conformity
	Degree of protection	EN 60529
	Flammability	DIN EN 50265-2-1
Ambient conditions
Ambient temperature		-25... 75 °C (-13... 167 °F) cable, flexing: -5... 80 °C (23... 176 °F) cable, fixed: -40... 90 °C (-40... 194 °F)
Mechanical specifications
Connection type		4 x socket M12 x 1 4-pin Master cable
Degree of protection		IP65/IP67
Material
	Contacts	CuSn
	Contact surface	Ni/Au
	Housing	PA
	Cable	PUR
	Seal	O-ring: NBR
Cable		flexible
	Sheath diameter	8.7 mm
	Bending radius	> 10 x cable diameter, moving
	Color	black
	Cores	Signal line (4): 4 x 0.34 mm² (AWG 22) Supply line (1, 3), PE (5): 3 x 0.75 mm² (AWG 18)
	Conductor construction	42 x 0.1 mm ∅ 96 x 0.1 mm ∅
	Length	5 m
Mass		approx. 609 g
Flammability		94 V-0
