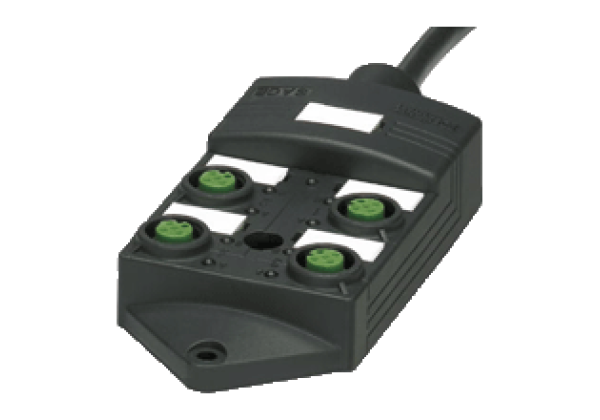

Splitter boxes V1-4A-E2-10M-PUR
Brand: Pepperl+Fuchs
Code: V1-4A-E2-10M-PUR
Quadruple splitter box with M12 connector with basic cable
Datasheet excerpt: Technical data of V1-4A-E2-10M-PUR
| Product Description |
|---|
| Quadruple splitter box with M12 connector with basic cable |
| General specifications | ||
|---|---|---|
| Number of pins | 4 | |
| UL File Number | E191152 | |
| Indicators/operating means | ||
| LED green | supply voltage each module | |
| LED yellow | I/O status indication | |
| Electrical specifications | ||
| Operating voltage | 24 V DC, max. 30 V DC | |
| Operating current | ≤ 5 mA per channel indication element | |
| Current loading capacity | ≤ 2 A per channel, ≤ 4 A per plug-in station, ≤ 12 A total current per separator | |
| Output | ||
| Number/Type | 4 | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| Flammability | DIN EN 50265-2-1 | |
| Ambient conditions | ||
| Ambient temperature | housing: -25... 80 °C (-13... 176 °F) cable, flexing: -5... 80 °C (23... 176 °F) cable, fixed: -40... 90 °C (-40... 194 °F) | |
| Mechanical specifications | ||
| Connection type | 4 x socket M12 x 1 4-pin Master cable | |
| Degree of protection | IP65/IP67 | |
| Material | ||
| Contacts | Cu alloy | |
| Contact surface | Au | |
| Housing | PBT | |
| Threaded bushings | PBT | |
| Cable | PUR | |
| Seal | O-ring: NBR | |
| Core insulation | PVC | |
| Cable | flexible | |
| Sheath diameter | ∅ 6.9 mm | |
| Bending radius | > 10 x cable diameter, moving > 7.5 x cable diameter, fixed | |
| Color | black | |
| Cores | Signal line (4): 4 x 0.34 mm2 (AWG 22) Supply line (1, 3), PE (5): 3 x 0.75 mm2 (AWG 18) | |
| Conductor construction | 19 x 0.15 mm ∅ and 42 x 0.15 mm ∅ | |
| Length | 10 m | |
| Drag chain suitability | ||
| Drag chain cycles | min. 1500000 | |
| Motion velocity | max. 2 m/s | |
| Traverse distance | 2 m | |
| Mass | approx. 920 g | |
