Splitter boxes V1-8/16A-5M-PUR-O4
Brand: Pepperl+Fuchs
Code: V1-8/16A-5M-PUR-O4

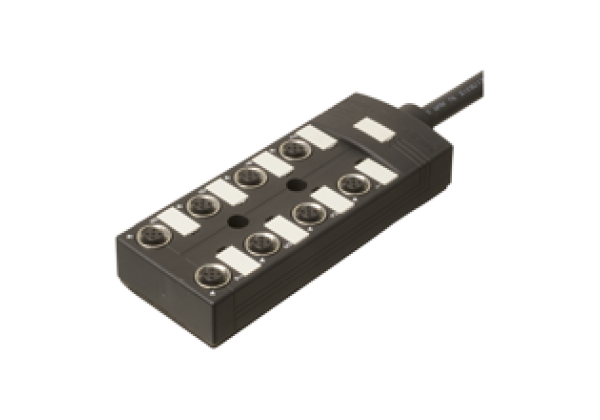

Splitter box octuple, twin configuration, with trunk cable
Datasheet excerpt: Technical data of V1-8/16A-5M-PUR-O4
| Product Description |
|---|
| Splitter box octuple, twin configuration, with trunk cable |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | socket | |
| Construction type | 8x M12 | |
| Locking | screw connection | |
| Number of pins | 5 | |
| Coding | A-coded | |
| Customization | 8 connections , twin configuration | |
| Connector 2 | ||
| Connection | cable end | |
| Electrical specifications | ||
| Operating voltage | max. 48 V AC/DC | |
| Current loading capacity | ≤ 2 A per channel, ≤ 4 A per plug-in station, ≤ 12 A total current per separator | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 | |
| Flammability | DIN EN 50265-2-1 | |
| Oil resistance | DIN VDE 0472-803 | |
| Ambient conditions | ||
| Ambient temperature | housing: -30... 90 °C (-22... 194 °F) | |
| Cable, fixed | -40... 90 °C (-40... 194 °F) | |
| Cable, flexing | -5... 80 °C (23... 176 °F) | |
| Mechanical specifications | ||
| Plug connector | ||
| Tightening torque | 0.4 Nm | |
| Mating cycles | min. 100 | |
| Degree of protection | IP65 / IP67 / IP69 | |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 | |
| Sheath diameter | 10.5 mm | |
| Bending radius | > 10 x cable diameter, moving > 7.5 x cable diameter, fixed | |
| Sheath color | black (similar to RAL 9005) | |
| Cores | Signal line (2, 4): 16 x 0.5 mm2 Supply line (1, 3), PE (5): 3 x 1 mm2 | |
| Core construction | Signal line (2, 4): 28 x 0.15 mm Supply line (1, 3), PE (5): 56 x 0.15 mm | |
| Length | 5 m | |
| Cable code | Li YY 11Y-HF | |
| Drag chain suitability | ||
| Drag chain cycles | min. 1500000 | |
| Motion velocity | max. 2 m/s | |
| Traverse distance | 2 m | |
| Mass | 1317.7 g | |
| Material | ||
| PWIS free | yes | |
| Plug connector | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | PBT, black | |
| Seal | FPM | |
| Contact surface | Au | |
| Cable | ||
| Sheathing | PUR | |
| Core insulation | PVC | |
| Chemical resistance | good | |
| Oil resistance | yes | |
| Flammability | flame-resistant | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440108 |
| ECLASS 12.0 | 27440108 |
| ECLASS 11.0 | 27440108 |
| ECLASS 10.0.1 | 27440108 |
| ECLASS 9.0 | 27440108 |
| ECLASS 8.0 | 27279219 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002585 |
| ETIM 8.0 | EC002585 |
| ETIM 7.0 | EC002585 |
| ETIM 6.0 | EC002585 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31261501 |
