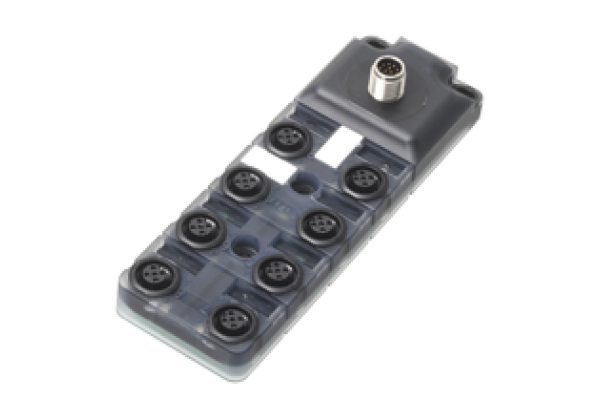

Splitter boxes V1-8A-E2-V112
Brand: Pepperl+Fuchs
Code: V1-8A-E2-V112
8-way passive distributor with M12 plug, 12-pin
Datasheet excerpt: Technical data of V1-8A-E2-V112
| Product Description |
|---|
| 8-way passive distributor with M12 plug, 12-pin |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | socket | |
| Construction type | 8x M12 | |
| Locking | screw connection | |
| Number of pins | 5 | |
| Coding | A-coded | |
| Connector 2 | ||
| Connection | plug | |
| Construction type | M12 | |
| Locking | screw connection | |
| Number of pins | 12 | |
| Coding | A-coded | |
| UL File Number | E223772 | |
| Indicators/operating means | ||
| LED green | supply voltage each module | |
| LED yellow | I/O status indication | |
| Electrical specifications | ||
| Operating voltage | 24 V DC | |
| Operating current | max. 1.5 A per contact | |
| Current loading capacity | ≤ 1.5 A per contact 1.5 A Total current | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 | |
| Ambient conditions | ||
| Ambient temperature | -20... 70 °C (-4... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65/IP67 | |
| Material | ||
| Housing | Plastic ABS, flame resistant | |
| Mass | approx. 150 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440111 |
| ECLASS 12.0 | 27440111 |
| ECLASS 11.0 | 27440111 |
| ECLASS 10.0.1 | 27440111 |
| ECLASS 9.0 | 27440108 |
| ECLASS 8.0 | 27279219 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC003558 |
| ETIM 8.0 | EC003558 |
| ETIM 7.0 | EC003558 |
| ETIM 6.0 | EC002585 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31261501 |
