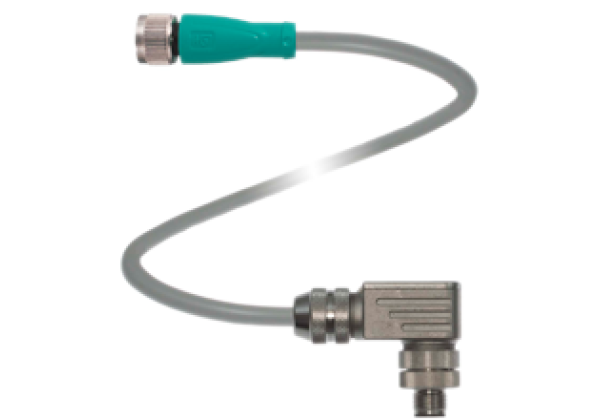

Adapter M12 x 1 A to B-coded V1-G-2,5M-PUR-ABG-V15B-W

Code: V1-G-2,5M-PUR-ABG-V15B-W

Adapter M12 x 1 A-coded to M12 x 1 B-coded, PUR cable 4-pin, shielded

Datasheet excerpt: Technical data of V1-G-2,5M-PUR-ABG-V15B-W

Product Description
Adapter M12 x 1 A-coded to M12 x 1 B-coded, PUR cable 4-pin, shielded

General specifications
Number of pins		4 + shield
Connection 1		socket
Construction type 1		straight
Threading 1		M12
Connection 2		Male connector
Construction type 2		right angle
Threading 2		M12
Electrical specifications
Operating voltage		max. 300 V DC
Test voltage		> 1500 V _eff AC
Operating current		max. 4 A
Volume resistance		< 5 mΩ
Ambient conditions
Ambient temperature		cable, flexing: -25... 80 °C (-13... 176 °F) cable, fixed: -40... 80 °C (-40... 176 °F)
Pollution degree		3
Mechanical specifications
Contact elements		spring-loaded contact socket
Pin diameter		1 mm
Degree of protection		IP67
Material
	Contacts	CuSn / Au
	Contact surface	Au
	Body	TPU, green
	Cable	PUR
	Slotted nut	Diecast zinc
	Sleeve connector	Diecast zinc
	Core insolation	PP
Cable		fine-strand, flexible
	Sheath diameter	∅4.8 mm
	Bending radius	> 10 x cable diameter, moving > 5 x cable diameter, fixed
	Color	grey
	Cores	4 x 0.34 mm²
	Conductor construction	19 x 0.15 mm ∅
	Shield	grid covering 85 %
	Length	2.5 m
Flammability
	Contact carrier	94 HB
	Housing	94 V-2
