Y connection cable V1-G-OR0,6M-POC-T-V1-G
Brand: Pepperl+Fuchs
Code: V1-G-OR0,6M-POC-T-V1-G

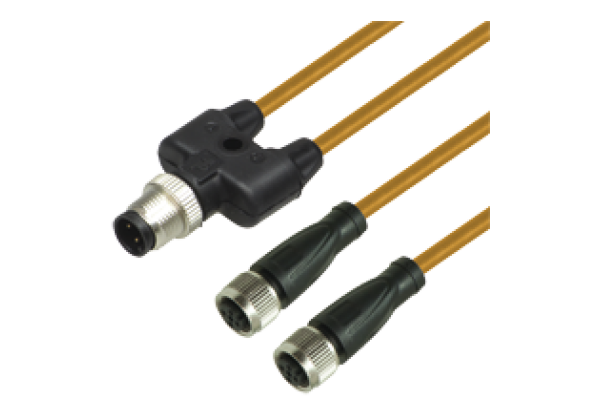

Y connection cable M12 plug straight A-coded 4-pin to 2x M12 socket straight A-coded 4-pin, 2x POC cable welding-bead resistant orange, suitable for robotic applications, torsion resistant, oil resistant, molecularly cross-linked
Datasheet excerpt: Technical data of V1-G-OR0,6M-POC-T-V1-G
| Product Description |
|---|
| Y connection cable M12 plug straight A-coded 4-pin to 2x M12 socket straight A-coded 4-pin, 2x POC cable welding-bead resistant orange, suitable for robotic applications, torsion resistant, oil resistant, molecularly cross-linked |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | socket | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Connector 2 | ||
| Connection | socket | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Connector 3 | ||
| Connection | plug | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Electrical specifications | ||
| Operating voltage | max. 48 V AC / 60 V DC | |
| Operating current | max. 4 A | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 | |
| Flammability | IEC 60332-1-2 , ISO 14572 , ISO 6722 | |
| Halogen-free | IEC 60754-2 | |
| Hydrolysis resistance | ISO 6722 | |
| Oil resistance | ISO 14572 | |
| Ambient conditions | ||
| Ambient temperature | ||
| Plug connector | -40... 90 °C (-40... 194 °F) | |
| Cable, fixed | -40... 120 °C (-40... 248 °F) for 20000 h -40... 150 °C (-40... 302 °F) for 3000 h | |
| Cable, flexing | -15... 120 °C (5... 248 °F) for 20000 h -15... 150 °C (5... 302 °F) for 3000 h | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Plug connector | ||
| Tightening torque | 0.6 Nm | |
| Loosening protection | available | |
| Tool installation | straight knurling | |
| Mating cycles | min. 100 | |
| Degree of protection | IP67 / IP68 / IP69 | |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 | |
| Sheath diameter | 4.8 mm | |
| Bending radius | > 10 x cable diameter, moving > 10 x cable diameter, fixed | |
| Sheath stripping force | max. 50 N / 300 mm | |
| Sheath color | orange (similar to RAL 2003) | |
| Number of cores | 4 | |
| Core cross section | 0.34 mm2 | |
| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black | |
| Core construction | 19 x 0.16 mm ∅ | |
| Length | L1 = 0.6 m L2 = 0.6 m | |
| Cable code | Li 7Y 41X 4 x 0,34 | |
| Drag chain suitability | ||
| Torsion cycles | min. 300000 | |
| Torsional stress | ± 360 °/ 30 cm | |
| Material | ||
| PWIS free | yes | |
| Halogen-free | yes | |
| Plug connector | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | TPU, black | |
| Contact surface | Au | |
| Flammability | V-2 | |
| Cable | ||
| Sheathing | POC | |
| Core insulation | ETFE | |
| Welding-bead resistance | yes | |
| Weld spatter resistance | yes | |
| Oil resistance | yes | |
| Hydrolysis resistance | yes | |
| Flammability | flame-resistant | |
| Molecularly cross-linked | yes | |
