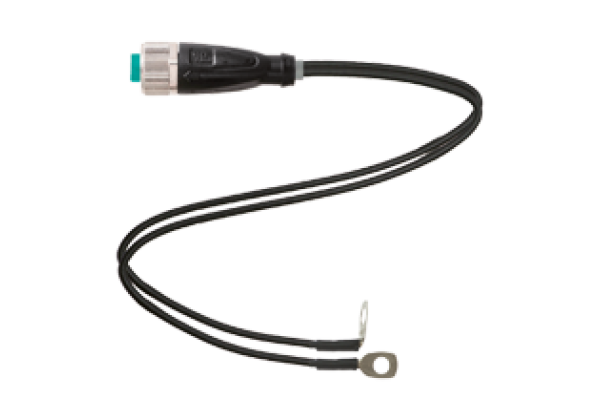

Y connection cable V1-GY-1M/2M-PUR-TAP
Brand: Pepperl+Fuchs
Code: V1-GY-1M/2M-PUR-TAP
Y connection cable M12 socket straight A-coded 4-pin, PUR 2x single cores
Datasheet excerpt: Technical data of V1-GY-1M/2M-PUR-TAP
| Product Description |
|---|
| Y connection cable M12 socket straight A-coded 4-pin, PUR 2x single cores |
| General specifications | ||
|---|---|---|
| Customization | core ends with terminal lug , 1x 90° angle | |
| Connector 1 | ||
| Connection | socket | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Connector 2 | ||
| Connection | cable end | |
| Electrical specifications | ||
| Operating voltage | max. 300 V DC | |
| Operating current | max. 4 A | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 | |
| Ambient conditions | ||
| Ambient temperature | ||
| Plug connector | -40... 90 °C (-40... 194 °F) | |
| Cable, fixed | -40... 80 °C (-40... 176 °F) | |
| Cable, flexing | -25... 80 °C (-13... 176 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Plug connector | ||
| Tightening torque | 0.6 Nm | |
| Loosening protection | available | |
| Tool installation | straight knurling and hexagon nut SW = 14 mm | |
| Mating cycles | min. 100 | |
| Degree of protection | IP54 | |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 6 | |
| Sheath diameter | 2 x 2.7 mm | |
| Bending radius | > 5 x cable diameter, moving > 2 x cable diameter, fixed | |
| Sheath color | black and red | |
| Number of cores | 1 | |
| Core cross section | 0.75 mm2 | |
| Core construction | 96 x 0.1 mm ∅ | |
| Length | RD: L1 = 1 m; BK: L2 = 2 m | |
| Material | ||
| Halogen-free | yes | |
| Plug connector | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | TPU, black | |
| Seal | FKM | |
| Contact surface | gold plated (Au) | |
| Flammability | V-2 | |
| Cable | ||
| Sheathing | PUR based on polyether | |
| Core insulation | TPE | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440106 |
| ECLASS 12.0 | 27440106 |
| ECLASS 11.0 | 27440112 |
| ECLASS 10.0.1 | 27440112 |
| ECLASS 9.0 | 27440106 |
| ECLASS 8.0 | 27440312 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002585 |
| ETIM 8.0 | EC002585 |
| ETIM 7.0 | EC002585 |
| ETIM 6.0 | EC002585 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
