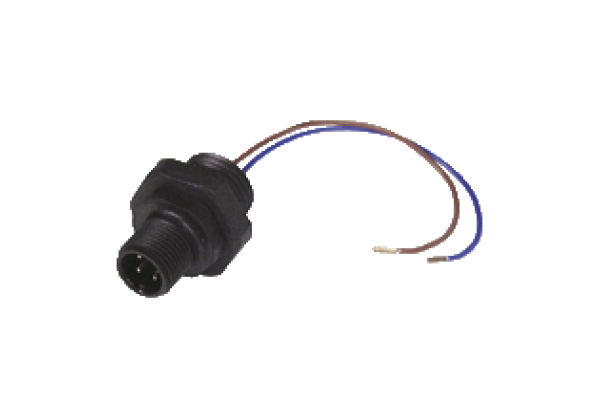

Receptacles V1-PG13,5-Y124355
Brand: Pepperl+Fuchs
Code: V1-PG13,5-Y124355
Receptacle, M12/PG13.5, 2-pin; plastic
Datasheet excerpt: Technical data of V1-PG13,5-Y124355
| Product Description |
|---|
| Receptacle, M12/PG13.5, 2-pin; plastic |
| General specifications | ||
|---|---|---|
| Number of pins | 4 | |
| Connection 1 | Male connector | |
| Construction type 1 | straight | |
| Threading 1 | M12 | |
| Connection 2 | cable end | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| Mechanical specifications | ||
| Degree of protection | IP67 when sealing with O-Ring | |
| Connection | Single strand leads with connector sleeves | |
| Material | ||
| Connector | plastic | |
| Core insolation | PVC | |
| Cable | ||
| Number of cores | 2 | |
| Core cross-section | 0.25 mm2 | |
| Length | 250 mm | |
| Installation | Front mounting PG13.5 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440103 |
| ECLASS 10.0.1 | 27440103 |
| ECLASS 9.0 | 27440103 |
| ECLASS 8.0 | 27440103 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 6.0 | EC002061 |
| ETIM 5.0 | EC001121 |
| UNSPSC 12.1 | 31251501 |
