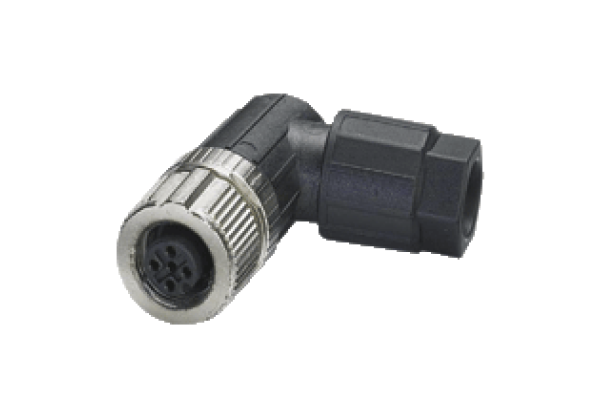

Female connector, field-attachable V1-W-SC

Female connector, field-attachable V1-W-SC

Code: V1-W-SC

Female connector M12 angled A-coded 4-pin, for cable diameter 4 - 8 mm, field-attachable, cage spring connection

Datasheet excerpt: Technical data of  V1-W-SC

Product Description
Female connector M12 angled A-coded 4-pin, for cable diameter 4 - 8 mm, field-attachable, cage spring connection
General specifications
Connector 1
Connectionsocket
Construction typeM12
Styleangled
Lockingscrew connection
Number of pins4
CodingA-coded
CustomizationCoding rotateable in steps of 45°
Electrical specifications
Operating voltagemax. 250 V AC/DC
Operating currentmax. 4 A
Volume resistance< 5 mΩ
Insulation resistancemin. 100 MΩ
Conformity
Degree of protectionEN 60529
Plug connectionconnector M12 x 1 : IEC 61076-2-101
Ambient conditions
Ambient temperature-40... 85 °C (-40... 185 °F)
Pollution degree3
Mechanical specifications
Plug connector
Tightening torque0.4 Nm
Tool installationstraight knurling
Mating cyclesmin. 100
Degree of protectionIP67
ConnectionCage spring connection
Cable
Sheath diameter4... 8 mm
Core cross section0.14... 0.75 mm2 / 26... 18 AWG
Mass22.6 g
Material
Plug connector
Screw connectionCuZn, nickel-plated
BodyPA, black
SealNBR
Contact surfaceNi/Au

Classifications

SystemClasscode
ECLASS 13.027440103
ECLASS 12.027440103
ECLASS 11.027440102
ECLASS 10.0.127440102
ECLASS 9.027440102
ECLASS 8.027440104
ECLASS 5.127279201
ETIM 9.0EC002635
ETIM 8.0EC002635
ETIM 7.0EC002635
ETIM 6.0EC002635
ETIM 5.0EC002585
UNSPSC 12.131251501
