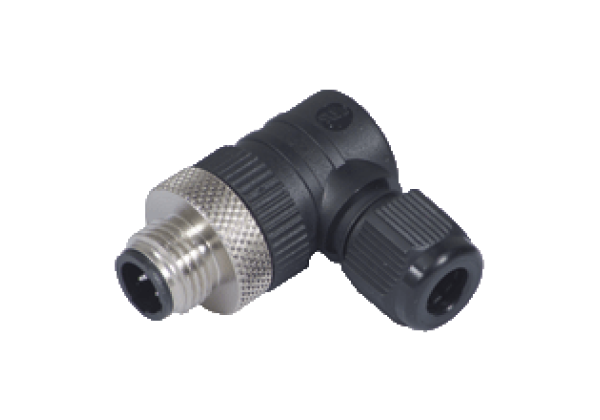

Field-attachable male connector V12S-W
Brand: Pepperl+Fuchs
Code: V12S-W
Field connector - Male, 1/2", Micro AC, 3-pin
Datasheet excerpt: Technical data of V12S-W
| Product Description |
|---|
| Field connector - Male, 1/2", Micro AC, 3-pin |
| General specifications | ||
|---|---|---|
| Number of pins | 3 | |
| Connection 1 | Male connector | |
| Construction type 1 | right angle | |
| Threading 1 | 1/2" | |
| Electrical specifications | ||
| Operating voltage | max. 250 V AC | |
| Operating current | max. 4 A | |
| Volume resistance | ≤ 5 mΩ | |
| Ambient conditions | ||
| Ambient temperature | -25... 90 °C (-13... 194 °F) | |
| Mechanical specifications | ||
| Connection type | 1/2"-20 UN F , right angle Male connector with Screw terminals for max. 0.75 mm2 | |
| Core cross-section | max. 0.75 mm2 18 AWG | |
| Degree of protection | IP67 | |
| Material | ||
| Contacts | Cu alloy | |
| Contact surface | Au | |
| Body | PA | |
| Slotted nut | brass, nickel-plated | |
| Cable | ||
| Sheath diameter | 4... 6 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
