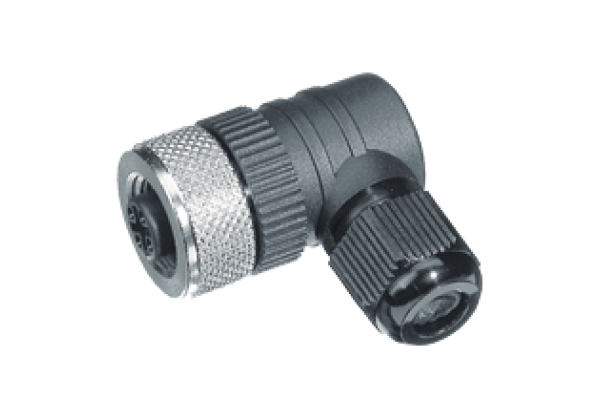

Female connector, field-attachable V15-W-PG7
Brand: Pepperl+Fuchs
Code: V15-W-PG7
Female connector M12 angled A-coded 5-pin, field-attachable
Datasheet excerpt: Technical data of V15-W-PG7
| Product Description |
|---|
| Female connector M12 angled A-coded 5-pin, field-attachable |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | socket | |
| Construction type | M12 | |
| Style | angled | |
| Locking | screw connection | |
| Number of pins | 5 | |
| Coding | A-coded | |
| Electrical specifications | ||
| Operating voltage | max. 48 V AC / 60 V DC | |
| Operating current | max. 4 A | |
| Volume resistance | < 10 mΩ | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 | |
| Ambient conditions | ||
| Ambient temperature | -28... 90 °C (-18.4... 194 °F) , note derating | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Plug connector | ||
| Tightening torque | 1.5... 1.6 Nm | |
| Tool installation | straight knurling | |
| Mating cycles | min. 50 | |
| Degree of protection | IP65 | |
| Connection | screw terminals for max. 0.75 mm2 / AWG 18 | |
| Cable | ||
| Sheath diameter | 4... 6 mm | |
| Material | ||
| Plug connector | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | PBT, black | |
| Seal | NBR , FKM | |
| Contact surface | CuSnZn | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
