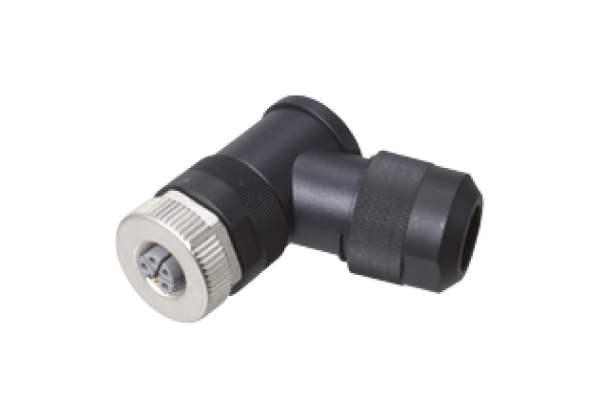

Female connector, field-attachable V15L-W-BK

Code: V15L-W-BK

Female connector M12 angled L-coded 5-pin, for cable diameter 8 - 13 mm, field-attachable

Datasheet excerpt: Technical data of V15L-W-BK

Product Description
Female connector M12 angled L-coded 5-pin, for cable diameter 8 - 13 mm, field-attachable

General specifications
Connector 1
	Connection	socket
	Construction type	M12
	Style	angled
	Locking	screw connection
	Number of pins	5
	Coding	L-coded
	Customization	Coding rotateable in steps of 72°
Electrical specifications
Rated operating voltage		max. 48 V AC / 63 V DC
Rated operating current		1.5 mm², AWG 16 : 12 A 2.5 mm², AWG 14 : 16 A
Insulation resistance		min. 10000 MΩ
Conformity
Degree of protection		EN 60529
Plug connection		connector M12 x 1 : IEC 61076-2-101
Ambient conditions
Ambient temperature		-40... 105 °C (-40... 221 °F)
Pollution degree		3
Mechanical specifications
Plug connector
	Tightening torque	0.6 Nm
	Tool installation	straight knurling , hexagon nut SW = 22 mm
	Mating cycles	min. 100
Degree of protection		IP67
Connection		screw terminals for max. 1.5 mm² / AWG 16 with wire end ferrule screw terminals for max. 2.5 mm² / AWG 14 without wire end ferrule
Cable
	Sheath diameter	8... 13 mm
Mass		53.58 g
Material
Plug connector
	Screw connection	CuZn, nickel-plated
	Body	PA, black
	Contact surface	Au
	Flammability	V-0
