Male connector, field-attachable V15S-G-Q3

Male connector, field-attachable V15S-G-Q3

Code: V15S-G-Q3

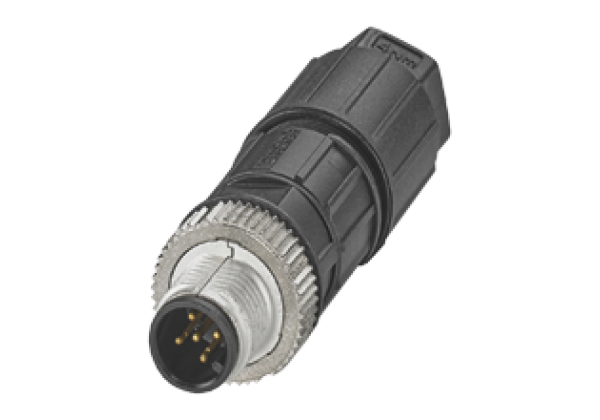

Male connector M12 straight A-coded 5-pin, for cable diameter 4 - 7 mm, field-attachable, insulation displacement connection

Datasheet excerpt: Technical data of  V15S-G-Q3

Product Description
Male connector M12 straight A-coded 5-pin, for cable diameter 4 - 7 mm, field-attachable, insulation displacement connection
General specifications
Connector 1
Connectionplug
Construction typeM12
Stylestraight
Lockingscrew connection
Number of pins5
CodingA-coded
Electrical specifications
Operating voltagemax. 48 V AC / 60 V DC
Operating currentmax. 4 A
Insulation resistancemin. 100 MΩ
Conformity
Degree of protectionEN 60529
Plug connectionconnector M12 x 1 : IEC 61076-2-101
Ambient conditions
Ambient temperature-40... 85 °C (-40... 185 °F)
Pollution degree3
Mechanical specifications
Plug connector
Tightening torque0.4 Nm
Tool installationstraight knurling
Mating cyclesmin. 100
Degree of protectionIP65
ConnectionInsulation displacement connection for 0.14... 0.5 mm2 / AWG 26... AWG 20
Cable
Sheath diameter4... 7 mm
Mass20.5 g
Material
Plug connector
Screw connectionZinc diecast, nickel-plated
BodyPA, black
SealFKM
Contact surfaceNi/Au
FlammabilityV-0

Classifications

SystemClasscode
ECLASS 13.027440103
ECLASS 12.027440103
ECLASS 11.027440102
ECLASS 10.0.127440102
ECLASS 9.027440102
ECLASS 8.027440104
ECLASS 5.127279201
ETIM 9.0EC002635
ETIM 8.0EC002635
ETIM 7.0EC002635
ETIM 6.0EC002635
ETIM 5.0EC002585
UNSPSC 12.131251501
