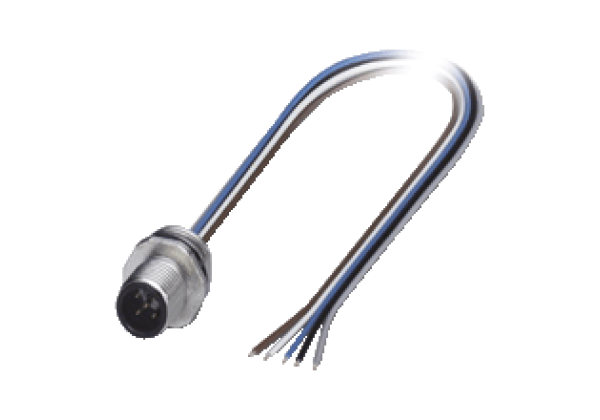

Receptacles V15S-M16-500
Brand: Pepperl+Fuchs
Code: V15S-M16-500
Receptacles, M12/M16, 5-pin
Datasheet excerpt: Technical data of V15S-M16-500
| Product Description |
|---|
| Receptacles, M12/M16, 5-pin |
| General specifications | ||
|---|---|---|
| Number of pins | 5 | |
| Connection 1 | Male connector | |
| Construction type 1 | straight | |
| Threading 1 | M12 | |
| Connection 2 | cable end | |
| UL File Number | E191152 | |
| Electrical specifications | ||
| Operating voltage | max. 60 V DC | |
| Test voltage | > 2000 V eff AC | |
| Operating current | max. 4 A | |
| Volume resistance | < 3 mΩ | |
| Insulation resistance | min. 100 MΩ | |
| Ambient conditions | ||
| Ambient temperature | -25... 85 °C (-13... 185 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Pin diameter | 1 mm | |
| Degree of protection | IP67 | |
| Connection | Tinned copper single leads, ∅1.2 ±0.07 mm | |
| Material | ||
| Contacts | CuZn | |
| Contact surface | Au | |
| Connector | Zinc die-casting, nickel-plated | |
| Seal | NBR | |
| Core insulation | TPE | |
| Cable | ||
| Cores | 5 x 0.34 mm2 | |
| Number of cores | 5 | |
| Core cross-section | 0.34 mm2 | |
| Conductor construction | 7 x 0.25 mm ∅ | |
| Length | 500 mm | |
| Installation | Front mounting | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440103 |
| ECLASS 10.0.1 | 27440103 |
| ECLASS 9.0 | 27440103 |
| ECLASS 8.0 | 27440103 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 6.0 | EC002061 |
| ETIM 5.0 | EC001121 |
| UNSPSC 12.1 | 31251501 |
